SKU: FLUKE-MDA-550-III
The Fluke MDA 550 III Motor Drive Analyzer simplifies complex motor drive troubleshooting. Guided test setups and automated drive measurements provide reliable, repeatable test results.
List price. Volume pricing available.
The Fluke MDA 550 III Motor Drive Analyzer simplifies complex motor drive troubleshooting. Guided test setups and automated drive measurements provide reliable, repeatable test results.
The Fluke Motor Drive Analyzer 4-Channel Color Pro # FLUKE-MDA-550-III is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Test point | Sub group |
| V-A-Hz | V ac+dc |
| V peak | V peak max |
| A peak | A peak max |
| Unbalance | V ac+dc |
| Peak | V pk-to-pk |
| Zoom 1 | V PWM |
| Zoom 2 | V peak max |
| Zoom 3 peak | V peak max |
| Zoom 3 level | Delta V |
| Events off | V pk-to-pk |
| Events on | Delta V |
| Voltage | V ac |
| Current | A ac |
| Measurement Function | Specification |
| Maximum voltage with 10:1 or 100:1 probe | 1000 V |
| Maximum resolution with 10:1 or 100:1 probe (voltage to ground) | 1mV / 10mV |
| Full scale reading | 999 counts |
| Accuracy at 4 s to 10 us/div | ± (1.5 % + 6 counts) |
| Maximum voltage with 10:1 or 100:1 probe (voltage to ground) | 1000 V |
| Maximum resolution with 10:1 or 100:1 probe | 1 mv / 10 mV |
| DC to 60 Hz | ± (1.5 % + 10 counts) |
| 60 Hz to 20 kHz | ± (2.5 % + 15 counts) |
| 20 kHz to 1 MHz | ± (5 % + 20 counts) |
| 1 MHz to 25 MHz | ± (10 % + 20 counts) |
| Purpose | To measure on pulse width modulated signals, like motor drive inverter outputs |
| Principle | Readings show the effective voltage based on the average value of samples over a whole number of periods of the fundamental frequency |
| Accuracy | As Vac+dc for sinewave signals |
| Modes | Max peak, min peak, or pk-to-pk |
| Max peak, min peak | ± 0.2 division |
| Pk-to-pk | ± 0.4 division |
| Ranges | Same as V ac, Vac+dc or V peak |
| Scale Factors | 0.1 mV/A, 1 mV/A, 10 mV/A, 20 mV/A, 50mV/A, 100 mV/A, 200 mV/A, 400 mV/A |
| Range | 1.000 Hz to 500 MHz |
| Frequency (Hz) | Voltage/Herz ratio (V/Hz) |
| Voltage unbalance drive input | Voltage unbalance drive output and motor input |
| Current unbalance drive input | Current unbalance drive output and motor input |
| Readings | Voltage difference (dV), time difference (dt), voltage vs time difference (dV/dt), overshoot |
| Harmonics | DC to 51st |
| Spectrum ranges | 1…9 kHz, 9-150 kHz (20 MHz filter on), up to 500 MHz (voltage modulation) |
| Events / second | Indicative percentage based on rise and fall time (Impulse discharges) measurements |
| Number of screens | Typical 50 screens can be saved in reports (depends on compression ratio) |
| Transfer to PC | Using 32 GB or smaller 2 GB USB stick or mini-USB to USB cable or WiFi link and FlukeView™ 2 for ScopeMeter® |
| Voltage Probe | 1:1, 10:1, 100:1, 1000:1, 20:1, 200:1 |
| Current Clamp | 0.1 mV/A, 1 mV/A, 10 mV/A, 20 mV/A, 50 mV/A, 100 mV/A, 200 mV/A, 400 mV/A |
| Shaft Voltage Probe | 1:1, 10:1, 100:1 |
| General | IEC 61010-1: Pollution Degree 2 |
| Measurement | Measurement IEC 61010-2-030: CAT IV 600 V / CAT III 1000 V |
| Maximum voltage between any Terminal and Earth Ground | 1000 V |
| Max. input voltages | Via VPS410-II or VPS421 1000 V CAT III / 600 V CAT IV |
| BNC Input | A, B, C, D directly 300 V CAT IV |
| Max. Floating Voltage, test tool or test tool with VPS410-II / VPS421 voltage probe | From any terminal to earth ground 1000 V CAT III / 600 V CAT IV Between any terminal 1000 V CAT III / 600 V CAT IV |
| Working voltage between probe tip and probe reference lead | VPS410-II: 1000 VVPS421: 2000 V |

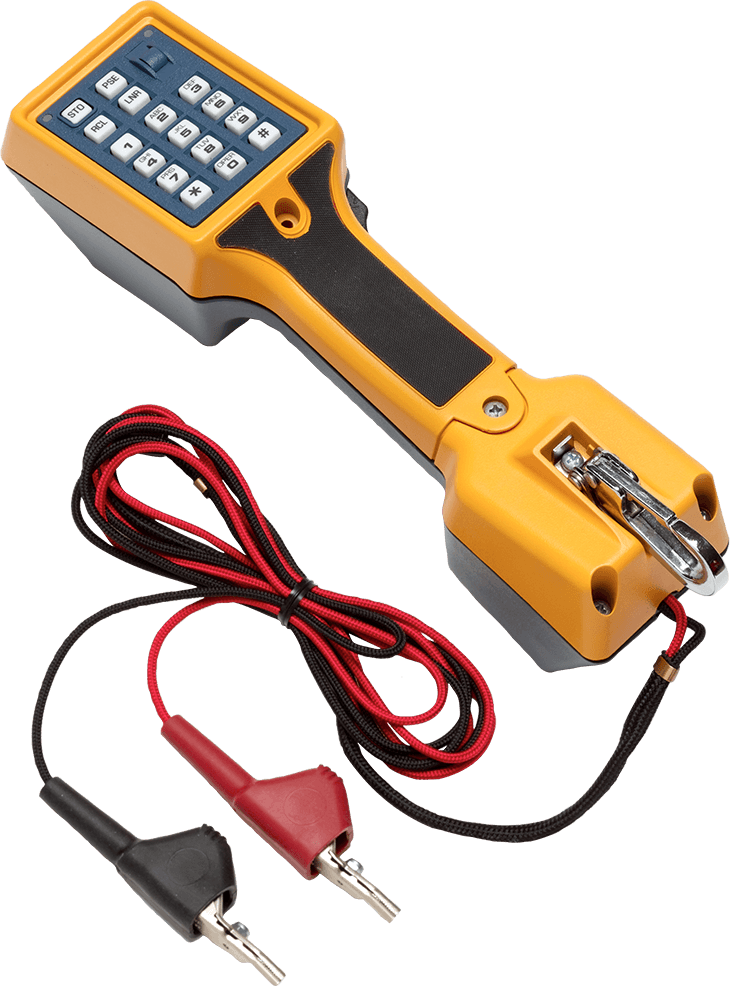

087724767001 TS30/120 Angl/Pin

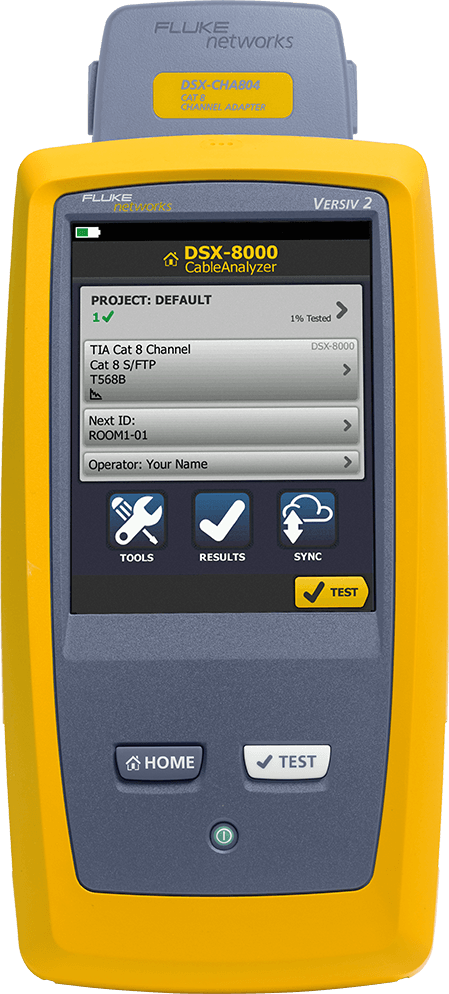

1 GHz DSX Cable Analyzer Modules Add on Kit
