SKU: FLUKE-393 FC

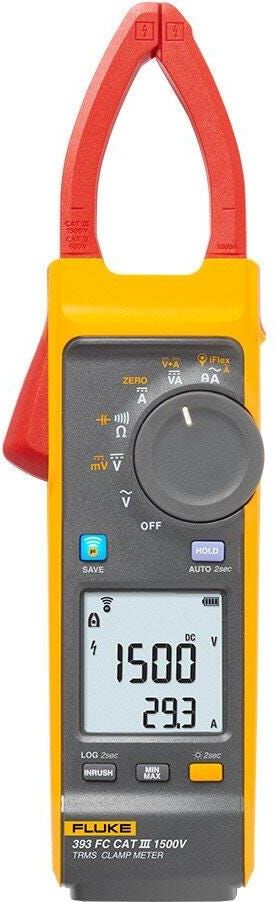

393 FC solar clamp meter measures up to 1500 V dc, 1000 V ac, IP54 rated, CAT III. Ideal for PV installation, solar PV arrays, electric railways and data centers.
List price. Volume pricing available.
393 FC solar clamp meter measures up to 1500 V dc, 1000 V ac, IP54 rated, CAT III. Ideal for PV installation, solar PV arrays, electric railways and data centers.
The Fluke 393 FC CAT III 1500V TRMS Wireless Clamp with iFlex # FLUKE-393 FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| AC | 1000 V |
| DC | 1500 V |
| Batteries | 2 AA IEC LR6 alkaline |
| Display | Dual display with backlight |
| Automatic Power Off | 20 minutes |
| Temperature Coefficients | Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C |
| Range | 999.9 A |
| Resolution | 0.1 A |
| Accuracy | 2 % + 5 digits (10 Hz to 100 Hz) |
| Crest Factor (50/60 Hz) | 2.5 @600.0 A |
| Crest Factor (50/60Hz) | 2.5 @1400 A |
| Distance from Optimum | i2500-10 Flex |
| A | 0.5 in (12.7 mm) |
| B | 0.8 in (20.3 mm) |
| C | 1.4 in (35.6 mm) |
| General | Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range. |
| Trigger Level | 5 Hz to 10 Hz, ≥10 A |
| Inrush Trigger Level | 5 A |
| Size (L x W x H) | 281 mm x 84 mm x 49 mm |
| Weight (with batteries) | 520 g |
| Jaw Opening | 34 mm |
| Flexible Current Probe Diameter | 7.5 mm |
| (head to electronics connector) | 1.8 m |
| Operating Temperature | -10 °C to 50 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | Non condensing (<10°C) |
| Operating Altitude | 2000 m |
| Storage Altitude | 12 000 m |
| Ingress Protection (IP) Rating | IEC 60529: IP54 non-operating |
| International | IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A |
| Korea (KCC) | Class A equipment (Industrial Broadcast & Communications Equipment) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
| Measurement | IEC 61010-2-032: CAT III 1500 V / CAT IV 600 V |
| Radio frequency certification | FCC ID: T68-FBLE, IC: 6627A-FBLE |
| Wireless Radio Frequency Range | 2400 MHz to 2483.5 MHz |
| Output Power | <100 mW |
