SKU: FLUKE-381 CAL

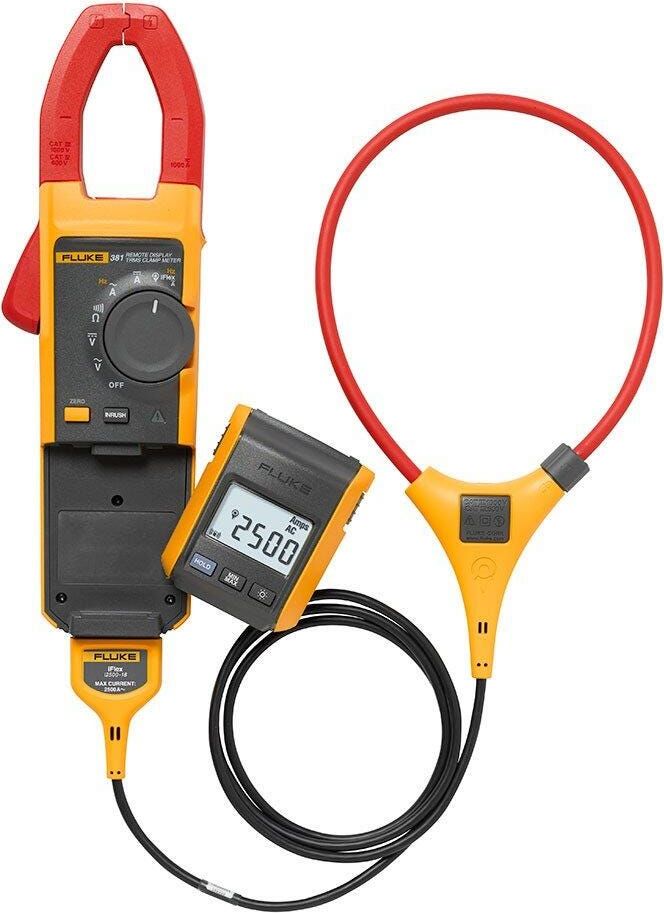

For added safety & convenience, the Fluke 381 Double Clamp Meter + detachable display allows you to take readings remotely and in tough-to-reach spots.
List price. Volume pricing available.
For added safety & convenience, the Fluke 381 Double Clamp Meter + detachable display allows you to take readings remotely and in tough-to-reach spots.
The Fluke 381 CAL Remote Disp 1000A TRMS Clamp with iFlex, Calibration Traceable with Data # FLUKE-381 CAL is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Electrical Specifications |
| Range | 999.9 A |
| Resolution | 0.1 A |
| Accuracy | 2% ± 5 digits (10-100 Hz)5% ± 5 digits (100-500 Hz) |
| Crest Factor (50/60 Hz) | 3 @ 500 A2.5 @ 600 A1.42 @ 1000 AAdd 2% for C.F. > 2 |
| A | 0.5 in (12.7 mm) |
| B | 0.8 in (20.3 mm) |
| C | 1.4 in (35.6 mm) |
| Trigger Level | 5 – 10 Hz, ≥ 10 A10 – 100 Hz, ≥ 5 A100 – 500 Hz, ≥ 10 A |
| Size (L x W x H) | 277 x 88 x 43 mm (55 mm for remote unit) |
| Weight | 350 g |
| Jaw Opening | 34 mm |
| Flexible Current Probe Diameter | 7.5 mm |
| Flexible Current Probe Cable Length(head to electronics connector) | 1.8 m |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +60°C |
| Operating Humidity | Non condensing (≤ 90% RH (at 10°C to 30°C)≤ 75% RH (at 30°C to 40°C)≤ 45% RH (at 40°C to 50°C)(Without Condensation) |
| Operating Altitude | 2,000 meters |
| Storage Altitude | 12,000 meters |
| EMI, RFI, EMC, RF | EN 61326-1:2006, EN 61326-2-2:2006ETSI EN 300 328 V1.7.1:2006ETSI EN 300 489 V1.8.1:2008FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249FCCID: T68-F381RSS-210 IC: 6627A-F381 |
| Temperature Coefficients | Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C |
| Wireless Frequency | 2.4 GHz ISM Band 10 meter range |
| Safety Compliance | ANSI/ISA S82.02.01:2004CAN/CSA-C22.2 No. 61010-1-04IEC/EN 61010-1:2001 to 1000V CAT III, 600V CAT IV. |
| Double Insulation Clearance | Per IEC 61010-2-032 |
| Double Insulation Creepage | Per IEC 61010-1 |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLUKE- 381 | Request Quote | View Details → |
FLUKE-381 CALCurrent | Request Quote | Viewing |
