Family Owned & Operated Since 1971• Bakersfield, CA
SKU: FLUKE-378 FC/B
Non-contact voltage True-rms clamp meter with power quality function. Get Fluke 378 FC price, manual, reviews, how to use and specifications.
List price. Volume pricing available.
Non-contact voltage True-rms clamp meter with power quality function. Get Fluke 378 FC price, manual, reviews, how to use and specifications.

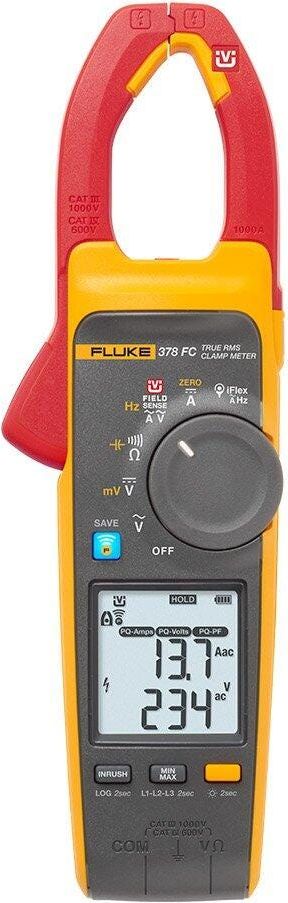

The Fluke 378 FC/B 1000A AC/DC TRMS Noncontact Voltage Wireless Clamp with PQ Indicator, Bulk # FLUKE-378 FC/B is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | General specifications |
| General Maximum Voltage between any Terminal and Earth Ground | 1000 V |
| Type | 2 AA IEC LR6 alkaline |
| Life | 200 hour |
| Display | Dual readout |
| Automatic Power Off | 20 minutes |
| Battery | AC Current: Jaw |
| Range | 999.9 A |
| Resolution | 0.1 A |
| Accuracy | 2 % ±5 digits (45 Hz to 66 Hz) |
| Crest Factor (50/60 Hz) | 3 @ 500 A2.5 @ 600 A1.42 @ 1000 AAdd 2 % for C.F. >2 |
| Crest Factor (50/60Hz) | 3.0 at 1100 A2.5 at 1400 A1.42 at 2500 AAdd 2 % for C.F. >2 |
| Distance from Optimum | i2500-10 Flex |
| A | 0.5 in (12.7 mm) |
| B | 0.8 in (20.3 mm) |
| C | 1.4 in (35.6 mm) |
| ≤4/0 AWG | 3 % ±5 digits (45 Hz to 66 Hz) |
| ≥4/0 AWG | 5 % ±5 digits (45 Hz to 66 Hz) |
| Trigger Level | 5 Hz to 10 Hz, ≥10 A10 Hz to 100 Hz, ≥ 5 A100 Hz to 500 Hz, ≥ 10 A |
| Size (L x W x H) | 274 mm x 86 mm x 47 mm |
| Weight (with Batteries) | 463 g |
| Jaw Opening | 34 mm |
| Flexible Current Probe Diameter | 7.5 mm |
| Flexible Current Probe Cable Length (head to electronics connector) | 1.8 m |
| Rogowski Coil Length | 450 mm |
| Operating Temperature | -10 °C to 50 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity (without condensation) | Non condensing (≤90 % RH (10 °C to 30 °C)≤75 % RH (30 °C to 40 °C)≤45 % RH (40 °C to 50 °C) |
| Temperature Coefficients | Add 0.1 x specified accuracy for each degree C >28 °C or <18 °C |
| Ingress Protection | IEC 60529: IP30 (jaw closed) |
| Operating Altitude | 2000 m |
| Storage Altitude | 12 000 m |
| International | IEC 61326-1: Portable Electromagnetic EnvironmentIEC 61326-2-2, CISPR 11: Group 1, Class B |
| Korea (KCC) | Class A equipment (Industrial Broadcast & Communications Equipment) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
| Measurement | IEC 61010-2-032: CAT III 1000 V / CAT IV 600 VIEC 61010-2-033: CAT III 1000 V / CAT IV 600 V |
| Current Clamp for Leakage Current Measurements | IEC 61557-13: Class 2, ≤30 A/m |
| Radio Frequency Certification | FCC ID: T68-FBLE IC:6627A-FBLE |
| Frequency Range | 2405 MHz to 2480 MHz |
| Output Power | <100 mW |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLUKE-378 FC/BCurrent | Request Quote | Viewing |
FLUKE-378 FC | Request Quote | View Details → |
