SKU: FLUKE-377 FC
Measure voltage and current with the clamp jaw of the Fluke 377 FC true-rms FC clamp meter with iFlex. Get Fluke 377 FC price, manual, reviews, how to use and specifications.
List price. Volume pricing available.
Measure voltage and current with the clamp jaw of the Fluke 377 FC true-rms FC clamp meter with iFlex. Get Fluke 377 FC price, manual, reviews, how to use and specifications.

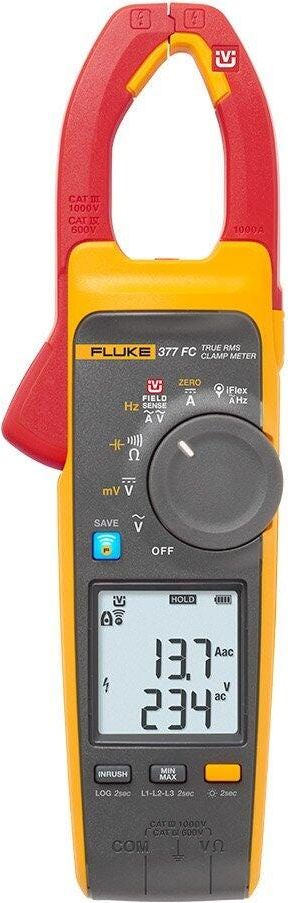

The Fluke 377 FC 1000A AC/DC TRMS Noncontact Voltage Wireless Clamp w/ iFlex # FLUKE-377 FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | General specifications |
| General Maximum Voltage between any Terminal and Earth Ground | 1000 V |
| Type | 2 AA IEC LR6 alkaline |
| Life | 200 hour |
| Display | Dual readout |
| Automatic Power Off | 20 minutes |
| Battery | AC Current: Jaw |
| Range | 999.9 A |
| Resolution | 0.1 A |
| Accuracy | 2 % ±5 digits (45 Hz to 66 Hz) |
| Crest Factor (50/60 Hz) | 3 @ 500 A2.5 @ 600 A1.42 @ 1000 AAdd 2 % for C.F. >2 |
| Crest Factor (50/60Hz) | 3.0 at 1100 A2.5 at 1400 A1.42 at 2500 AAdd 2 % for C.F. >2 |
| Distance from Optimum | i2500-10 Flex |
| A | 0.5 in (12.7 mm) |
| B | 0.8 in (20.3 mm) |
| C | 1.4 in (35.6 mm) |
| ≤4/0 AWG | 3 % ±5 digits (45 Hz to 66 Hz) |
| ≥4/0 AWG | 5 % ±5 digits (45 Hz to 66 Hz) |
| Trigger Level | 5 Hz to 10 Hz, ≥10 A10 Hz to 100 Hz, ≥ 5 A100 Hz to 500 Hz, ≥ 10 A |
| Size (L x W x H) | 274 mm x 86 mm x 47 mm |
| Weight (with Batteries) | 463 g |
| Jaw Opening | 34 mm |
| Flexible Current Probe Diameter | 7.5 mm |
| Flexible Current Probe Cable Length (head to electronics connector) | 1.8 m |
| Rogowski Coil Length | 450 mm |
| Operating Temperature | -10 °C to 50 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity (without condensation) | Non condensing (≤90 % RH (10 °C to 30 °C)≤75 % RH (30 °C to 40 °C)≤45 % RH (40 °C to 50 °C) |
| Temperature Coefficients | Add 0.1 x specified accuracy for each degree C >28 °C or <18 °C |
| Ingress Protection | IEC 60529: IP30 (jaw closed) |
| Operating Altitude | 2000 m |
| Storage Altitude | 12 000 m |
| International | IEC 61326-1: Portable Electromagnetic EnvironmentIEC 61326-2-2, CISPR 11: Group 1, Class B |
| Korea (KCC) | Class A equipment (Industrial Broadcast & Communications Equipment) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
| Measurement | IEC 61010-2-032: CAT III 1000 V / CAT IV 600 VIEC 61010-2-033: CAT III 1000 V / CAT IV 600 V |
| Current Clamp for Leakage Current Measurements | IEC 61557-13: Class 2, ≤30 A/m |
| Radio Frequency Certification | FCC ID: T68-FBLE IC:6627A-FBLE |
| Frequency Range | 2405 MHz to 2480 MHz |
| Output Power | <100 mW |
