SKU: FLUKE-374 FC
The Fluke 374 FC offers advanced troubleshooting performance & is now part of the Fluke Connect family of wireless tools. See our line of DC clamp meters.
List price. Volume pricing available.
The Fluke 374 FC offers advanced troubleshooting performance & is now part of the Fluke Connect family of wireless tools. See our line of DC clamp meters.

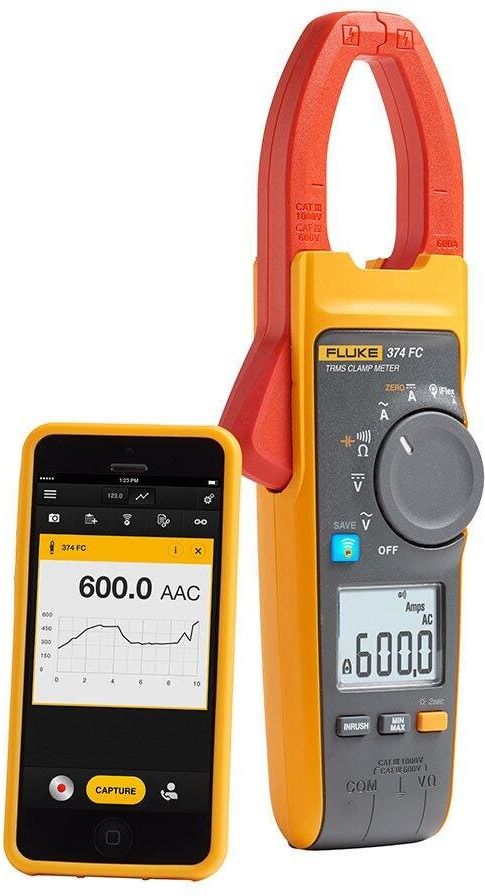

The Fluke 374 FC 600A AC/DC TRMS Wireless Clamp (Americas & Emea) # FLUKE-374 FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | General Specifications |
| Range | 600.0 A |
| Resolution | 0.1 A |
| Accuracy | 2% ±5 digits (10 Hz to 100 Hz)2.5% ±5 digits (100-500 Hz) |
| Crest Factor (50 Hz/60 Hz) | 2.5 @ 600 AAdd 2% for C.F. >2 |
| Crest Factor (50/60Hz) | 2.5 at 1400 A1.42 at 2500 AAdd 2% for C.F. > 2 |
| A | 0.5 in (12.7 mm) |
| B | 0.8 in (20.3 mm) |
| C | 1.4 in (35.6 mm) |
| Maximum voltage between any terminal and earth ground | 1000 V |
| Batteries | 2 AA, NEDA 15A, IEC LR6 |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -40 °C to +60 °C |
| Operating humidity -non-condensing (< 10°C) | ≤90% RH (at 10 °C to 30 °C)≤75% RH (at 30 °C to 40 °C)≤45% RH (at 40 °C to 50 °C) |
| Operating altitude | 3000 m |
| Storage altitude | 12,000 m |
| Size (L x W x H) | 249 x 85 x 45 mm |
| Weight | 395 g |
| Jaw opening | 34 mm |
| Flexible current probe diameter | 7.5 mm |
| Flexible current probe cable length(head to electronics connector) | 1.8 m |
| Safety | IEC 61010-1, Pollution Degree 2IEC 61010-2-032: CAT III 1000 V / CAT IV 600 VIEC 61010-2-033:CAT III 1000 V / CAT IV 600 V |
| IP rating | IEC 60529: IP30, non-operating |
| Radio Frequency Certification FCC ID | T68-FBLE IC:6627A-FBLE |
| International | IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2CISPR 11: Group 1, Class AGroup 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purpose. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object. |
| Korea (KCC) | Class A Equipment (Industrial Broadcasting & Communication Equipment)Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
| Temperature coefficients | Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C |
