Versatile and rugged for high currents up to 2000A AC/DC. Extra wide jaw easily clamps around large conductors found in high-current applications.

Key Features

Reliably handle a wide range of high-current applications with 2000 A AC + DC True RMS, 1400 A AC, and 2000 A DC
The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
CAT IV 600 V, CAT III 1000 V rating for added user protection
In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability

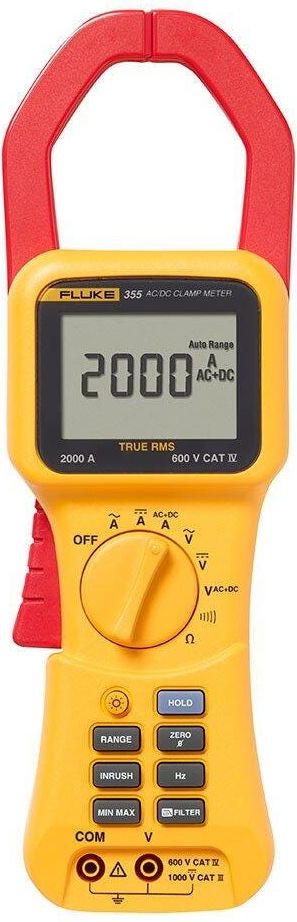

The Fluke 355 AC/DC TRMS Clamp Meter, 2000A # FLUKE-355 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Versatile and rugged for high currents up to 2000A AC/DC. Extra wide jaw easily clamps around large conductors found in high-current applications.

Key Features

Reliably handle a wide range of high-current applications with 2000 A AC + DC True RMS, 1400 A AC, and 2000 A DC
The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
CAT IV 600 V, CAT III 1000 V rating for added user protection
In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

General	Electrical Specifications
Range	40 A / 400 A / 1400 AC rms
Resolution	10 mA / 100 mA / 1 A
Accuracy	40 A: 1.5% rdg + 15 digits 400 A: 1.5% rdg + 5 digits 1400 A: 1.5% rdg + 5 digits
Trigger level for Inrush	0.50 A / 5.0 A / 5 A
Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Crest Factor1	2 @ 33 A, 2.4 @ 27 A2 @ 330 A, 2.4 @ 270 A2 @ 1000 A, 2.4 @ 833 A
Continuity beeper	On at ≤ 30 ΩOff at ≥ 100 Ω
Measurement range	5.0 Hz to 1 kHz
Accuracy – 5.0 Hz to 100 Hz	0.2% + 2 counts
Accuracy – 100.1 Hz to 1 kHz	0.5% + 5 counts
Trigger level	Refer to current and voltage tables
Frequency measurement	1. Add 2% to error spec for CF > 2
Batteries	Six 1.5 V AA NEDA 15 A or IEC LR6
Battery life (with typical usage, backlight off)	100 hours
Test leads	Rated to 1000 V
Weight	.814 kg (1.8 lb)
Jaw size	58 mm (2.28 in)
Dimensions (L x W x D)	300 x 98 x 52 mm (12 x 3.75 x 2 in)
Safety rating	IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III
Operating temperature	32°F to +122°F (0°C to +50°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Operating humidity	0 to 95% (non-condensing)
Operating altitude	2000 m
Storage altitude	10,000 m
IP rating	42 (indoor use only)
Drop test requirements	1 m
EMI, RFI, EMC	FCC part 15, IEC/EN 61326-1:1997 class BIEC/EN 61326:1997 3 V/m, performance criteria B, EN61325
Current	0.1% of reading per °C outside 22°C to 24°C
Voltage	0.1% of reading per °C outside 22°C to 24°C

General	Electrical Specifications
Range	40 A / 400 A / 1400 AC rms
Resolution	10 mA / 100 mA / 1 A
Accuracy	40 A: 1.5% rdg + 15 digits 400 A: 1.5% rdg + 5 digits 1400 A: 1.5% rdg + 5 digits
Trigger level for Inrush	0.50 A / 5.0 A / 5 A
Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Crest Factor1	2 @ 33 A, 2.4 @ 27 A2 @ 330 A, 2.4 @ 270 A2 @ 1000 A, 2.4 @ 833 A
Continuity beeper	On at ≤ 30 ΩOff at ≥ 100 Ω
Measurement range	5.0 Hz to 1 kHz
Accuracy – 5.0 Hz to 100 Hz	0.2% + 2 counts
Accuracy – 100.1 Hz to 1 kHz	0.5% + 5 counts
Trigger level	Refer to current and voltage tables
Frequency measurement	1. Add 2% to error spec for CF > 2
Batteries	Six 1.5 V AA NEDA 15 A or IEC LR6
Battery life (with typical usage, backlight off)	100 hours
Test leads	Rated to 1000 V
Weight	.814 kg (1.8 lb)
Jaw size	58 mm (2.28 in)
Dimensions (L x W x D)	300 x 98 x 52 mm (12 x 3.75 x 2 in)
Safety rating	IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III
Operating temperature	32°F to +122°F (0°C to +50°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Operating humidity	0 to 95% (non-condensing)
Operating altitude	2000 m
Storage altitude	10,000 m
IP rating	42 (indoor use only)
Drop test requirements	1 m
EMI, RFI, EMC	FCC part 15, IEC/EN 61326-1:1997 class BIEC/EN 61326:1997 3 V/m, performance criteria B, EN61325
Current	0.1% of reading per °C outside 22°C to 24°C
Voltage	0.1% of reading per °C outside 22°C to 24°C
