SKU: FLUKE-287 CAL

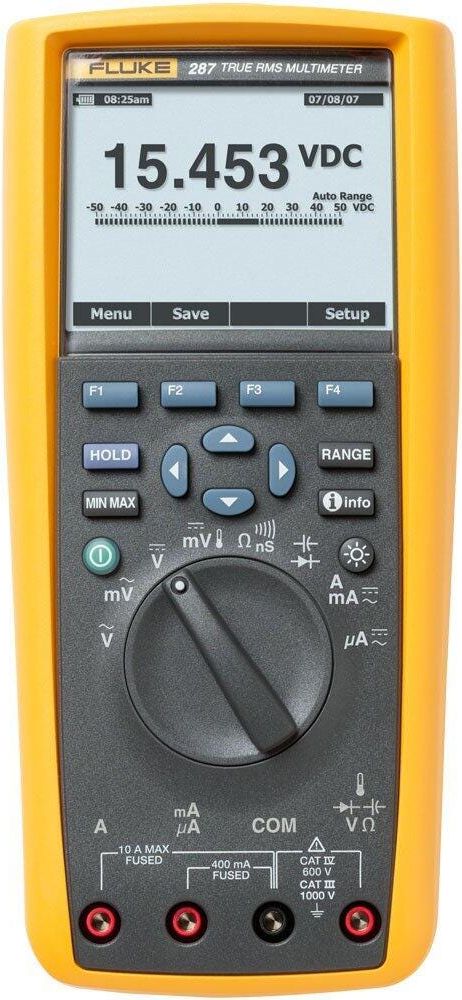

The Fluke 287 electronics multimeter allows you to log and zoom in on problems. Now compatible with the Fluke Connect mobile app.
List price. Volume pricing available.
The Fluke 287 electronics multimeter allows you to log and zoom in on problems. Now compatible with the Fluke Connect mobile app.
The Fluke 287 CAL Tru-RMS Electr Log mm W Trndcaptre, Cal Trceble with Data # FLUKE-287 CAL is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Range / resolution | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
| Basic accuracy | 0.025% |
| Connectivity | Optional infrared connector via Fluke ir3000 FC |
| Frequency | General Specifications |
| Maximum voltage between any terminal and earth ground | 1000 V |
| Battery type | 6 AA alkaline batteries, IECLR6 |
| Battery life | 100 hours minimum, 200 hours in logging mode |
| Operating | -20°C to 55°C |
| Storage | -40°C to 60°C |
| Relative humidity | 0 to 90% (0 t 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C) |
| Electromagnetic compatibility | EMC EN61326–1 |
| Vibration | Random vibration per MIL-PRF-28800F Class 2 |
| Shock | 1 meter drop per IEC/EN 61010–1 3rd Edition |
| Size (H x W x L) | 22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) |
| Weight | 870.9 g (28 oz) |
| Multiple on screen displays | Yes |
| True-RMS AC bandwidth | 100 kHz |
| dBV/dBm | Yes |
| DC mV resolution | 1 μV |
| Megohm range | Up to 500 MΩ |
| Conductance | 50.00 nS |
| Continuity beeper | Yes |
| Battery/fuse access | Yes/Yes |
| Elapse time clock | Yes |
| Time of day clock | Yes |
| Min-max-avg | Yes |
| Peak | 250 μs |
| Duty cycle | 0.01% to 99.99% |
| Pulse width | 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms |
| Hold | Yes |
| Isolated optical interface | Yes |
| Auto/touch hold | Yes |
| Reading memory | Yes |
| Log to PC | Yes |
| Interval/event logging | Yes |
| Logging memory | Up to 10,000 readings |
| Wireless connectivity (optional) | Yes |
This product is part of a family with 3 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLUKE-287 CALCurrent | Request Quote | Viewing |
FLK-287/FVF/IR3000 | Request Quote | View Details → |
FLUKE-287 | Request Quote | View Details → |
