SKU: FLUKE-1550C/KIT
The Fluke 1550C is a megohmmeter insulation resistance tester that offers insulation testing for up to 5 kV; this Fluke insulation tester is ideal for high voltage equipment like switch gear, motors, & cables.
List price. Volume pricing available.
The Fluke 1550C is a megohmmeter insulation resistance tester that offers insulation testing for up to 5 kV; this Fluke insulation tester is ideal for high voltage equipment like switch gear, motors, & cables.

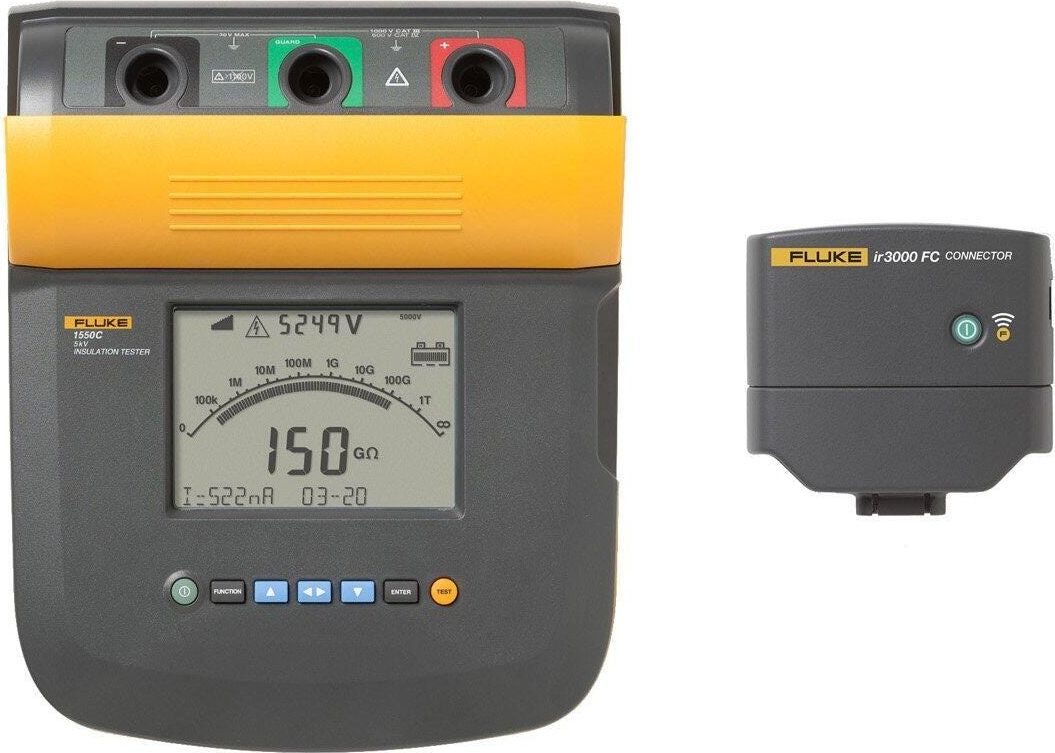

The Fluke 1550C/KIT 5KV Insulation Tester Kit # FLUKE-1550C/KIT is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Electrical Specifications |
| Range | 250 kΩ to 5 GΩ5 GΩ to 50 GΩ> 50 GΩ |
| Accuracy (± reading) | Unspecified5%20%Unspecified |
| Bar graph range | 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555) |
| Insulation test voltage accuracy | -0%, +10% at 1 mA load current |
| Induced AC mains current rejection | 2 mA maximum |
| Charging rate for capacitive load | 5 seconds per μF |
| Discharge rate for capacitive load | 1.5 s/μF |
| Accuracy | ± (20% + 2 nA) |
| Resolution setting | 1 minute |
| Resolution indication | 1 second |
| Warning range | 30 V to 660 V AC/DC, 50/60 Hz |
| Voltage accuracy | ± (15% + 2 V) |
| Software specifications | FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8. |
| Live circuit warning | General Specifications |
| Display | 75 x 105 mm |
| Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 |
| Charger Input (AC) | 85 V to 250 V AC 50/60 Hz 20 VA |
| Dimensions | 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in) |
| Weight | 3.7 kg (8.2 lb) |
| Temperature (operating) | -20°C to 50°C (-4°F to 122°F) |
| Temperature (storage) | -20°C to 65°C (-4°F to 149°F) |
| Humidity | 80% to 31°C decreasing linearly to 50% at 50°C |
| Altitude | 2000 m |
| Enclosure sealing | IP40 |
| Input overload protection | 1000 V AC |
| Electromagnetic compatibility | EN 61326 |
| Safety compliance | IEC 61010-1: Overvoltage category II, Pollution Degree 2.IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT IIIIEC 61557-1, IEC 61557-2 |
This product is part of a family with 3 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLUKE-1550C | Request Quote | View Details → |
FLUKE-1550C/KITCurrent | Request Quote | Viewing |
FLUKE-1550C FC KIT | Request Quote | View Details → |
