SKU: LCR200

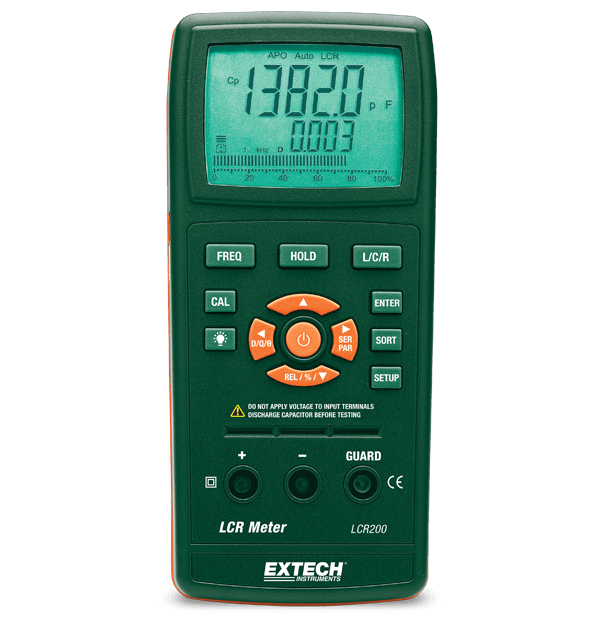

The LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display. You can set Hi/Lo limits using absolute values or percentages. Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and 9V battery.
List price. Volume pricing available.
The LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display. You can set Hi/Lo limits using absolute values or percentages. Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and 9V battery.
The Extech LCR200 LCR Meter # LCR200 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Capacitance | 20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF, 20.000µF, 200.00µF, 2.0000mF, 20.00mF |
| Dissipation Factor (DF) | 0.000 to 1999 |
| Inductance | 20µH, 200µH, 2000.0µH, 20.0000mH, 200.00mH, 2000.0H, 20.000H, 200.00H, 2000.0H |
| Inductance Basic Accuracy | ±(0.5% of reading + 5 digits) |
| Phase | ±90° |
| Quality Factor (Q) | 0.000 to 1999 |
| Resistance | 20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ |
| Test Frequency | 100Hz/120Hz/1kHz/10kHz/100kHz |
| Certifications | CE |
| Dimensions | 7.6 × 3.5 × 1.6" (193 × 88 × 41mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 14.8oz (420g) |

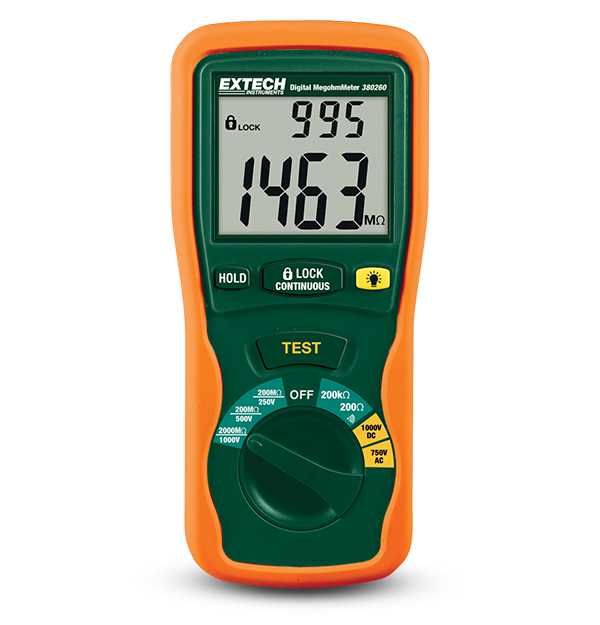

This autoranging megohmmeter measures insulation resistance up to 2000MΩ. Choice of 250,500 or 1000VDC test voltages. The large backlit dual display indicates test voltage output and insulation resistance. Low resistance, continuity and AC/DC voltage measurement functions. Other features include automatic discharge at the end of test, protective holster with stand, power lock on feature and data hold. Complete with test leads, carrying case and 6 AA batteries.

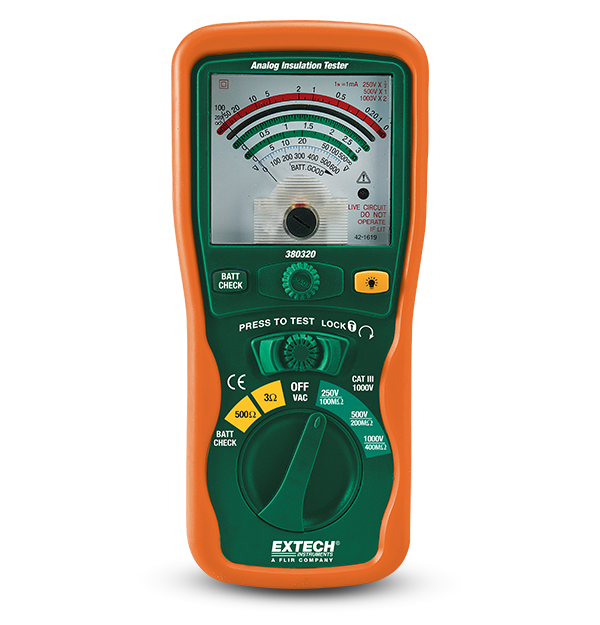

The Extech 380320 is an Analog Insulation Tester with a large, easy to read analog display. It features a live circuit warning which displays the actual AC voltage measurement. It also includes an automatic discharge circuit, lock power on feature for extended test times, and insulation resistance up to 400 MΩ. Complete with heavy duty test leads, alligator clip test lead, 6 AA batteries, hanging strap, and hard carrying case.

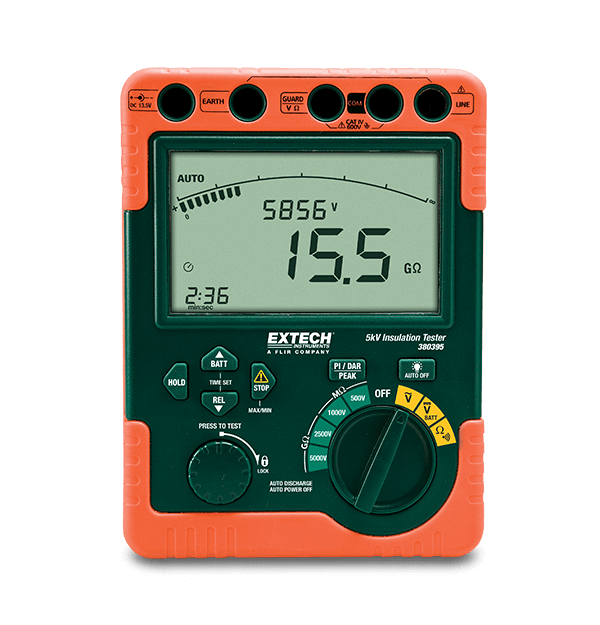

With the Extech 380395, measure insulation resistance up to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. Its features include polarization index measurement (PI), dielectric absorption ratio measurement (DAR), AC/DC voltage measurement up to 600 V, peak and relative functions, and a 1 min to 15 min timer function for IR measurements. Comes with test leads, eight C batteries, 120 V AC adaptor, heavy duty carrying case, and a user manual.

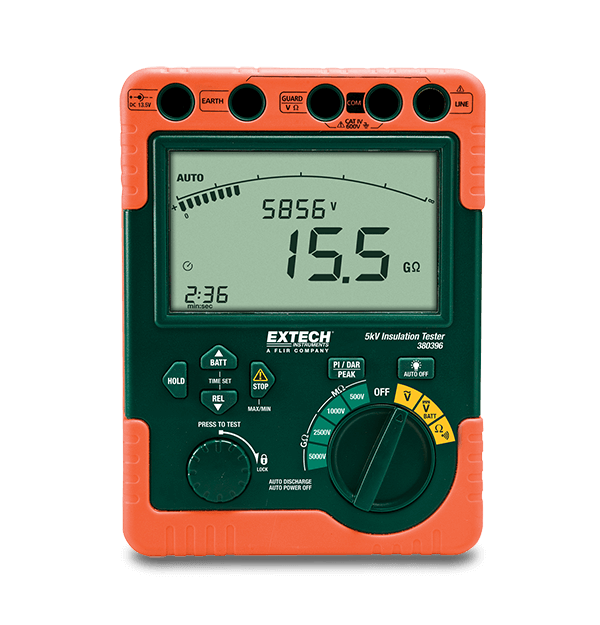

With the Extech 380396, measure insulation resistance to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. It features several measurements including polarization index (PI), dielectric absorption ratio (DAR), and AC/DC voltage to 600 V with a min/max function. It also has peak and relative functions, as well as a 1 to 15 minute timer function for IR measurements. Comes with test leads, eight C batteries, 220 V AC adaptor, heavy duty carrying case, and user manual.
