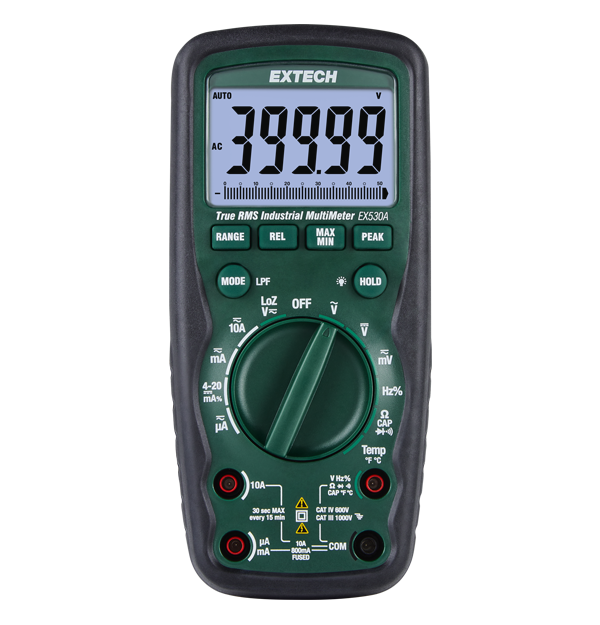

The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions.

The Extech EX530A Heavy Duty True RMS Multimeter # EX530A is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

AC Current	0.1 µA to 10 A
AC Voltage	1 mV to 1000 V
Capacitance	0.01 nF to 99.99 mF
Continuity	Yes
DC Current	0.1 µA to 10 A
DC Voltage	0.1 mV to 1000 V
Duty Cycle	0.1 to 99.9%
Frequency	Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz
Resistance	0.01 Ω to 50 MΩ
Temperature (Type K) Max Resolution	-45°C to 760°C (-50°F to 1400°F)
True RMS	Yes
Certifications	CE, UL
Dimensions	183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in)
Display	50,000-count segment LCD
IP Rating	IP67
Power	1 × 9 V battery
Safety Category	CAT IV-600 V
Warranty	3 years
Weight	380 g (13.4 oz)

Model	Description	Price
EX530ACurrent	The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions.	Request Quote	Viewing
EX530A-NIST	The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions.	Request Quote	View Details →

AC Current	0.1 µA to 10 A
AC Voltage	1 mV to 1000 V
Capacitance	0.01 nF to 99.99 mF
Continuity	Yes
DC Current	0.1 µA to 10 A
DC Voltage	0.1 mV to 1000 V
Duty Cycle	0.1 to 99.9%
Frequency	Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz
Resistance	0.01 Ω to 50 MΩ
Temperature (Type K) Max Resolution	-45°C to 760°C (-50°F to 1400°F)
True RMS	Yes
Certifications	CE, UL
Dimensions	183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in)
Display	50,000-count segment LCD
IP Rating	IP67
Power	1 × 9 V battery
Safety Category	CAT IV-600 V
Warranty	3 years
Weight	380 g (13.4 oz)

Model	Description	Price
EX530ACurrent	The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions.	Request Quote	Viewing
EX530A-NIST	The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions.	Request Quote	View Details →

EX530A Heavy Duty True RMS Multimeter
