Multi-Function Installation Tester (US)

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: C.A 6117

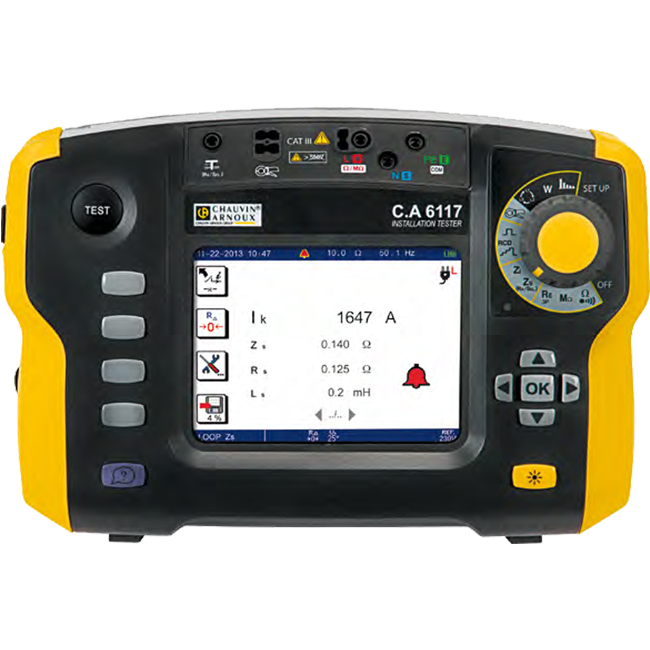

Multi-Function Installation Tester Model C.a 6117 (US)

$3,335.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

The High performance C.A6117 offers excellent measurement stability, even in electrically noisy industrial environments. All the measurements needed to test an electrical installation are available: continuity, resistance, insulation, ground resistance, selective earth measurements, loop impedance and type A and AC RCDs (GFCI circuits). The 6117 can also be used to measure voltage, frequency, AC current (via a current clamp), active power, harmonics and phase rotation. The C.A6117 is also equipped with type B RCD testing, a built in fuse table and a voltage drop feature.

The AEMC Instruments Multi-Function Installation Tester (US) # C.A 6117 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 4 models. Select a model below to view details.

Model	Description	Price
C.A 6116N Kit	Multi-Function Installation Tester Model C.A 6116N Kit (US) (includes C177A, DataView Software)	Request Quote	View Details →
C.A 6117 Kit	Multi-Function Installation Tester Model C.A 6117 Kit (US) (includes C177A, DataView Software)	Request Quote	View Details →
C.A 6116N	Multi-Function Installation Tester Model C.a 6116N (US)	Request Quote	View Details →
C.A 6117Current	Multi-Function Installation Tester Model C.a 6117 (US)	Request Quote	Viewing

Accessories, replacement sensors, and parts for this product family.

Model	Description	Price
2136.80	Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102,103,105, & 115 {Replacement DTR for Models 8510, 5060, 5070, CA 6116, CA1727, DL913, & DL914} Replaces Cat #2140.46	Request Quote	View Details →
2135.35	Test Kit for 3-Point Testing, Kit (Carrying Bag, [2] 150 ft Color-coded Leads on Spools (Red/Blue), [1] 30 ft Lead (Green), [2] 5 ft Tape Measure)	Request Quote	View Details →
2135.36	Test Kit for 4-Point Testing, Kit (Carrying Bag, [2] 300 ft Color-coded Leads on Spools (Red/Blue), [2] 100 ft Color-coded Leads (hand tied-Green/Black), [2] 5 ft Color-coded Leads (Red/Blue), [4] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Tape Measure)	Request Quote	View Details →
2960.47	Battery - Replacement 5.8AH 61.9Wh Li-Ion Battery Pack for Models C.a 6116N, C.a 6117, OX 9104-OX9304, & 8345	Request Quote	View Details →
2138.54	Continuity Probe to Use with Models C.a 6116/6116N/6117, Megohmmeters Series 6522-6536, Model Ca 6011	Request Quote	View Details →
2155.75	Megohmmeter Test Probe	Request Quote	View Details →
