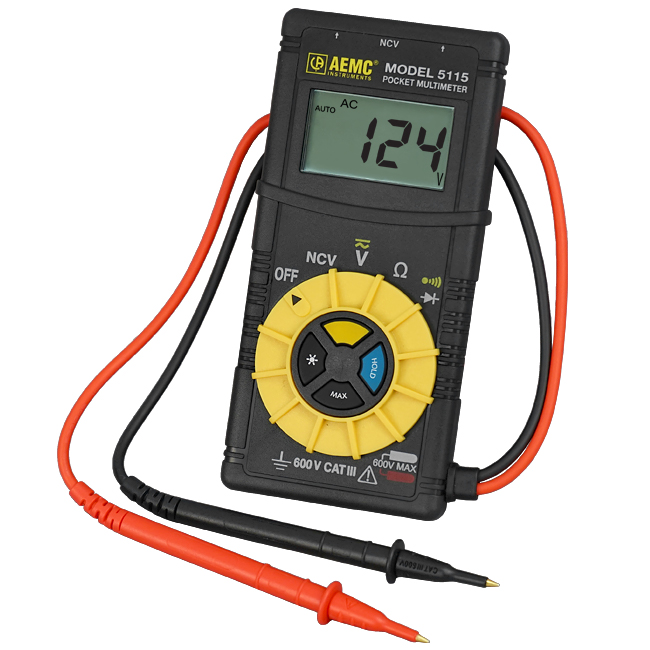

Pocket Digital Multimeter Model 5115 (NCV, Flashlight)

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: 2154.10

The Model 5115 is a professional pocket-sized digital multimeter rated to 600 V CAT III, with a built-in non-contact voltage detector and flashlight. Measures voltage (AC and DC), resistance, and continuity on a 2000-count backlit LCD. IP40 ingress rating; ships in a soft neoprene pouch with batteries installed.

$59.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

A professional and compact digital multimeter is designed to 600V CAT III rating and agency CE tested. This little pocket digital multimeter is extra thin and feature rich offering functions only found in meters several times higher in price. Small enough to fit into your pocket - versatile enough to handle many electrical measurement tasks with attached leads and an easy to use large rotary switch. A built-in non-contact voltage detector and flashlight adds to the versatility of this meter.

Key Features:

• Log In

• Products Cable Testers

• Clamp-On Meters

• Current Probes

• Data Loggers

• Decade Boxes

• Power Supplies / Generators

• Digital Multimeters

• Electrical Test Tools

• Environmental Testers

• Lightning Protection

• Ground Resistance Testers GroundFlex Field Kit

• Static Ground and Bond Test System Kit

• High Voltage Testers

• Megohmmeters - Insulation Testers

• Micro-Ohmmeters

• Multi-Function Installation Testers

• Oscilloscopes

• Power Analyzers / Energy Loggers

• Thermal Imaging

The AEMC Instruments Pocket Digital Multimeter Model 5115 (NCV, Flashlight) # 2154.10 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 10 models. Select a model below to view details.

Model	Description	Price
5212	The Model 5212 is a portable hand-held TRMS digital multimeter that measures voltage (AC and DC), current (AC and DC up to 10 A), resistance, and capacitance. Performs continuity checks, non-contact voltage detection, and diode testing with forward-bias voltage. Auto Range and Data HOLD on a 4000-count display; rugged housing rated to 600 V CAT III.	Request Quote	View Details →
5217	The Model 5217 is a portable hand-held TRMS digital multimeter that measures voltage (AC and DC), current (AC and DC up to 10 A), resistance, capacitance, frequency, and temperature (K-type thermocouple, −67° to 2192°F). Continuity checks, non-contact voltage detection, and diode testing; Auto Range and Data HOLD on a 6000-count backlit display. IP54 ingress; 600 V CAT III; >500-hour battery life.	Request Quote	View Details →
2154.03	The Model MTX 3292B is a portable hand-held multimeter with a 100,000-count, 320×240 pixel color graphical display. Measures voltage (1000 VAC/DC), current (10 A AC/DC, 20 A for 30 s), resistance (to 100 MΩ), capacitance, frequency (10 Hz to 5 MHz), and temperature via PT100/1000 RTDs and K/J thermocouples. Stores up to 30,000 measurements with dynamic recording and 600 Hz waveform display. IP67 waterproof; 1000 V CAT III / 600 V CAT IV; USB connectivity.	Request Quote	View Details →
2154.04	The Model MTX 3293B is a portable hand-held multimeter with a 100,000-count, 320×240 pixel color graphical display. Measures voltage (1000 VAC/DC), current (10 A AC/DC, 20 A for 30 s), resistance (to 100 MΩ), capacitance, frequency (10 Hz to 5 MHz), and temperature via PT100/1000 RTDs and K/J thermocouples. Dynamic recording with 30,000-measurement memory and waveform display. IP67 waterproof; 1000 V CAT III / 600 V CAT IV; USB connectivity.	Request Quote	View Details →
2154.05	The Model MTX 3292B-BT is the Bluetooth-enabled variant of the MTX 3292B — same 100,000-count color graphical display and ASYC IV TRMS engine, with wireless Bluetooth connectivity alongside the standard USB port. Measures voltage (1000 VAC/DC), current (10 A AC/DC), resistance (to 100 MΩ), capacitance, frequency (10 Hz to 5 MHz), and temperature. IP67 waterproof; 1000 V CAT III / 600 V CAT IV.	Request Quote	View Details →
2154.10Current	The Model 5115 is a professional pocket-sized digital multimeter rated to 600 V CAT III, with a built-in non-contact voltage detector and flashlight. Measures voltage (AC and DC), resistance, and continuity on a 2000-count backlit LCD. IP40 ingress rating; ships in a soft neoprene pouch with batteries installed.	Request Quote	Viewing
5233	The Model 5233 is a rugged, economical TRMS digital multimeter with non-contact voltage detection (display turns red near live cables) and K-type thermocouple temperature measurement (−4° to 1400°F). Measures voltage (1000 VAC / 600 VDC), current up to 10 A direct (15 A for 60 s), resistance to 60 MΩ. 6000-count display with 61-segment analog bargraph and backlight. 600 V CAT IV; overload protection to 8000 V.	Request Quote	View Details →
5231	The Model 5231 is a rugged, economical TRMS digital multimeter with non-contact voltage (NCV) detection — built for electrical installers, electricians, and HVAC technicians. Measures voltage (1000 VAC / 600 VDC), current (with 1 mV/A clamp), and resistance to 60 MΩ. 6000-count display with 61-segment analog bargraph and backlight. 1000 V CAT III / 600 V CAT IV safety; >100-hour battery life.	Request Quote	View Details →
2154.01	The Model MTX 3290 is a portable hand-held multimeter that measures voltage (AC and DC, up to 1000V), current (10A AC/DC, 15A for 30 s), resistance (to 60 MΩ), capacitance (to 60 mF), temperature, and frequency (60 Hz to 600 kHz). 6000-count digital LCD with low-impedance AC voltmeter for detecting ghost voltages; Min/Max/Avg/Peak monitoring; Auto Range and Data HOLD. IP67 waterproof; 600 V CAT III / 300 V CAT IV; ~100-hour battery life on 4 AA cells.	Request Quote	View Details →
2154.02	The Model MTX 3291 is a portable hand-held multimeter with a 60,000-count display that measures voltage (AC and DC, up to 1000 V), current (10 A AC/DC, 20 A for 30 s), resistance (to 60 MΩ), capacitance (to 60 mF), temperature (−328° to 1472°F), duty cycle, and frequency (60 Hz to 600 kHz). USB connectivity with SX_DMM software included. IP67 waterproof; 1000 V CAT III / 600 V CAT IV; ~100-hour battery life.	Request Quote	View Details →
