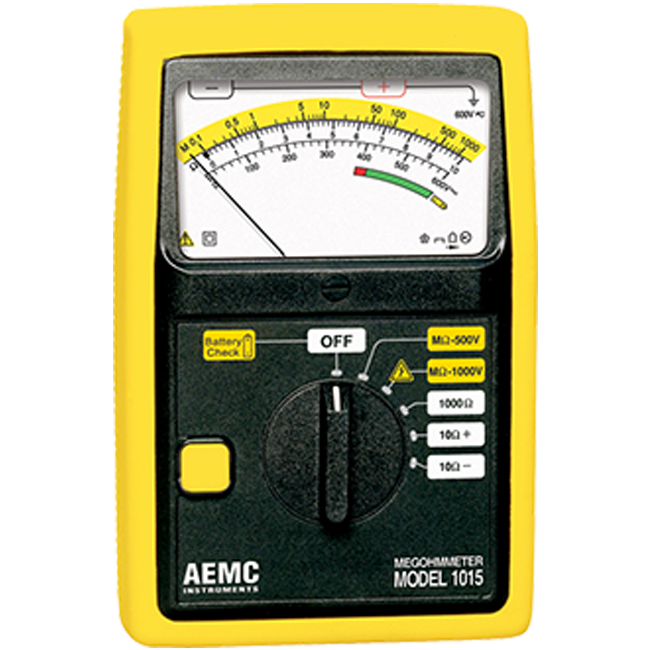

Megohmmeter Model 1015 (Analog, 500V, 1000V, Resistance, Continuity)

The Megohmmeter Model 1015 is a compact, self-contained, battery-operated True Megohmmeter. This practical, dependable and rugged insulation tester can be used for a broad range of plant and field service applications and is designed for use in harsh environments. The Model 1015 permits insulation resistance testing at 500V and 1000V, and resistance measurements up to 1000Ω. The Model 1015 is an analog instrument with four easy-to-read scales. The megohm scale is an easy-to-read log scale graduated from 0.1 to 1000MΩ. The ohm scale is linear with a range from 0 to 10Ω. The Model 1015 comes complete with carrying case, shockproof rubber housing, a pair of color-coded leads, with black test probe, red alligator clip. spare fuse, batteries and a user manual.

The AEMC Instruments Megohmmeter Model 1015 (Analog, 500V, 1000V, Resistance, Continuity) # 1015 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
