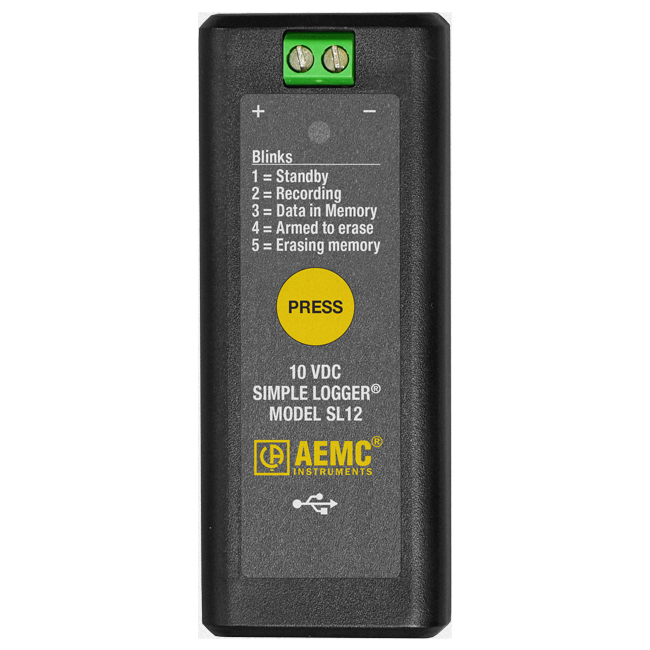

Simple Logger Model SL12 (Voltage, 10V DC)

The Simple Logger Model SL12 is a small one channel recording device powered by two AA alkaline batteries. It can also be powered by 5 V using the USB interface cable supplied. The input is (0 to 10) VDC facilitated by two screw terminals. Sample rate is 16/sec with a storage rate of once per second of the average of all the samples. Application software is included with the unit by plugging it into your computer using the USB cable and downloading it from our web site. Scaling units of measure and recording length can be set through the software. Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed. The main advantage of the logger is its ability to begin recording with only the need to configure the length of time for the recording. A simple one button operation is all you need. The front panel LED alerts the operator of the logger’s status.

The AEMC Instruments Simple Logger Model SL12 (Voltage, 10V DC) # SL12 is manufactured by AEMC Instruments. Valley Instrument Service is an authorized AEMC Instruments dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
