SKU: FLUKE-787B CAL

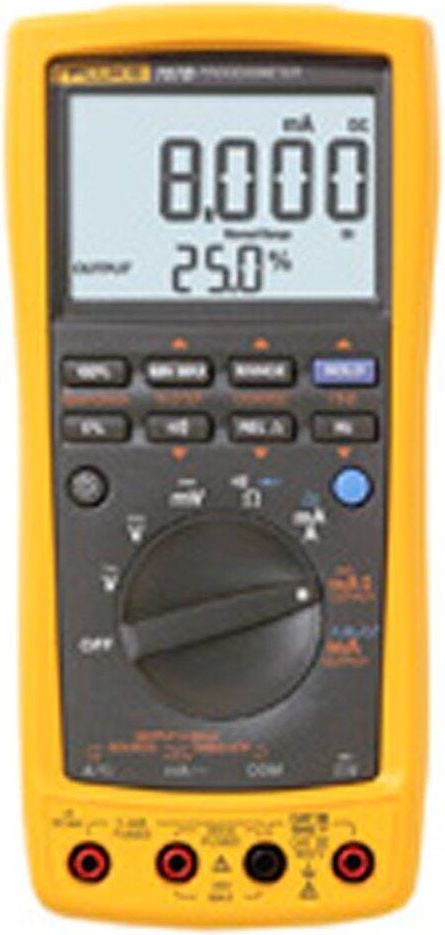

The Fluke 787B ProcessMeter Digital multimeter combines a DMM & mA loop calibrator into a single, cost-effective, rugged, hand-held test tool. Get details.
List price. Volume pricing available.
The Fluke 787B ProcessMeter Digital multimeter combines a DMM & mA loop calibrator into a single, cost-effective, rugged, hand-held test tool. Get details.
The Fluke 787B CAL Processmeter, Calibration Traceable with Data # FLUKE-787B CAL is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Measurement function | Range and resolution |
| V dc | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V |
| V ac (true-rms) | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V |
| mA dc | 30.000 mA |
| A dc | 1.000 A (0.440 A continuous) |
| A ac | 1.000 A (0.440 A continuous) |
| Resistance | 400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M |
| Frequency (0.5 Hz to 20 kHz) | 199.99 Hz, 1999.9 Hz, 19.999 kHz |
| Diode test | 2.000 V (shows diode voltage drop) |
| Continuity | Beeps for resistance |
| Output function | Range and resolution |
| DC current output (Internal battery operation) | 0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA |
| DC current simulate (Ext. 15 V to 48 V loop supply) | 0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA |
| Current adjustment modes | Automatic: Slow Ramp, Fast Ramp, 25% step |
| Maximum voltage applied between any jack and earth ground | 1000 V RMS |
| Storage temperature | -40 °C to 60 °C |
| Operating temperature | -20 °C to 55 °C |
| Temperature coefficient | 0.05 x (specified accuracy) per °C (for temperatures 28 °C) |
| Relative humidity | 95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C |
| Vibration | Random, 2 g, 5-500 Hz |
| Shock | 1 meter drop test |
| Safety | IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V |
| Size (HxWxL) | 50 x 100 x 203 mm (1.97 x 3.94 x 8.00 in) |
| Weight | 600 g (1.3 lbs) |
| Battery | Four AA alkaline batteries |
| Battery life | 140 hours typical (measurement), 10 hours typical (sourcing 12 mA) |
| Warranty | Three years |
