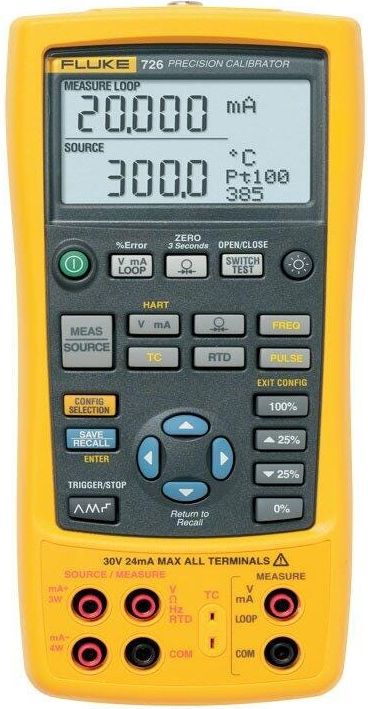

726 Calibrator with 1 Year Premium Care Standard

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: FLUKE-726/FPC

Fluke 726 is so user-friendly you may not need a manual. It offers best accuracy & performance in a handheld multifunction process calibrator. Get the specs.

$6,530.99

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Fluke 726 is so user-friendly you may not need a manual. It offers best accuracy & performance in a handheld multifunction process calibrator. Get the specs.

Key Features

Precision multifunction, temp, frequency, voltage, and mA calibrator
Calibrates thermocouples and RTD temperature instruments
Stores up to eight calibration results in memory for analysis
Built-in 24 V Loop Power Supply

The Fluke 726 Calibrator with 1 Year Premium Care Standard # FLUKE-726/FPC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Accessories, replacement sensors, and parts for this product family.

Model	Description	Voltage	Accuracy	Maximum current	Operating temperature	Price
FPC1S-FLUKE72X-1	1 Yr Fluke Premium Care Standard for 726,725 and 721	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →
FPC1S-FLUKE75X-1	1 Yr Fluke Premium Care Standard for 754 & 753 DPC	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →
FPC3S-FLUKE72X-1	3 Yr Fluke Premium Care Standard for 726,725 and 721	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →
FPC3S-FLUKE75X-1	3 Yr Fluke Premium Care Standard for 754 & 753 DPC	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →
FLUKE-725/FPC	Fluke 725 Multifunction Process Calibrator calibrates almost anything & sources & measures almost all process parameters. Versatile, powerful.	24 V	10%	22 mA, short circuit protected	-10°C to +55°C	Request Quote	View Details →
FLUKE-726/FPCCurrent	Fluke 726 is so user-friendly you may not need a manual. It offers best accuracy & performance in a handheld multifunction process calibrator. Get the specs.	24 V	10%	22 mA, short circuit protected	-10°C to +55°C	Request Quote	Viewing
FLUKE-754/FPC	Calibrate, maintain, and troubleshoot HART and other instrumentation with the Fluke Calibration 754. Automate procedures and document results efficiently.	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →

726 Calibrator with 1 Year Premium Care Standard

SKU: FLUKE-726/FPC

Fluke 726 is so user-friendly you may not need a manual. It offers best accuracy & performance in a handheld multifunction process calibrator. Get the specs.

$6,530.99

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Fluke 726 is so user-friendly you may not need a manual. It offers best accuracy & performance in a handheld multifunction process calibrator. Get the specs.

Key Features

Precision multifunction, temp, frequency, voltage, and mA calibrator
Calibrates thermocouples and RTD temperature instruments
Stores up to eight calibration results in memory for analysis
Built-in 24 V Loop Power Supply

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Accessories, replacement sensors, and parts for this product family.

Model	Description	Voltage	Accuracy	Maximum current	Operating temperature	Price
FPC1S-FLUKE72X-1	1 Yr Fluke Premium Care Standard for 726,725 and 721	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →
FPC1S-FLUKE75X-1	1 Yr Fluke Premium Care Standard for 754 & 753 DPC	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →
FPC3S-FLUKE72X-1	3 Yr Fluke Premium Care Standard for 726,725 and 721	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →
FPC3S-FLUKE75X-1	3 Yr Fluke Premium Care Standard for 754 & 753 DPC	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →
FLUKE-725/FPC	Fluke 725 Multifunction Process Calibrator calibrates almost anything & sources & measures almost all process parameters. Versatile, powerful.	24 V	10%	22 mA, short circuit protected	-10°C to +55°C	Request Quote	View Details →
FLUKE-726/FPCCurrent	Fluke 726 is so user-friendly you may not need a manual. It offers best accuracy & performance in a handheld multifunction process calibrator. Get the specs.	24 V	10%	22 mA, short circuit protected	-10°C to +55°C	Request Quote	Viewing
FLUKE-754/FPC	Calibrate, maintain, and troubleshoot HART and other instrumentation with the Fluke Calibration 754. Automate procedures and document results efficiently.	Selectable, 26 V	10%, 18 V minimum at 22 mA	25 mA, short circuit protected	-10°C to +50°C	Request Quote	View Details →

General	Measurement Accuracy
30.000 V	0.01% + 2 mV (upper display)
20.000 V	0.01% + 2 mV (lower display)
90.00 mV	0.01% + 10 μV
-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA
Resistance	0.0 to 4000.0 Ω
2.0 to 1000.0 CPM	0.05% + 0.1 cpm
1.0 to 1000.0 Hz	0.05% + 0.1 Hz
1.00 to 15.00 kHz	0.05% + 0.01 kHz
Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of (50) 750P pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Frequency	Source Accuracy
100.00 mV	0.01% + 10 μV
24.000 mA (Source)	0.01% + 2 μA
24.000 mA (Simulate)	0.01% + 2 μA
Range, accuracy (percent of reading + floor) and excitation current	5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA
1.0 to 10.0 kHz	0.25%
10.0 to 15.0 kHz	0.5%
Waveform	5 V p-p squarewave, -0.1 V offset
Cu10	1.8°C
NI-120	0.15°C
PT-100 (385)	0.45°C
PT-100 (392)	0.35°C
PT-100 (391-JIS)	0.35°C
PT-200 (385)	0.95°C
PT-500 (385)	0.55°C
PT-1000 (385)	0.35°C
RTD Resolution	0.01°C (0.01°F)
Cu10.01 C	0.1°C (0.1°F)
J	0.4°C
K	0.5°C
T	0.4°C
E	0.4°C
R	1.4°C
S	1.4°C
B	1.4°C
L	0.45°C
U	0.45°C
N	0.6°C
XK	0.4°C
BP	1.1°C
TC Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
Measure and source accuracy	Specifications
Source functions	Voltage, current, resistance, frequency, temperature
Ramps	Slow ramp, Fast ramp, 25% step-ramp
Voltage	24 V
Accuracy	10%
Maximum current	22 mA, short circuit protected
Steps	25% of range, 100% of range
Step functions	Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to +71°C
Operating altitude	3000 m
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Size	200 x 96 x 47 mm (7.9 x 3.8 x 1.9 in)
Weight	650 g (23 oz)
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessible without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming

General	Measurement Accuracy
30.000 V	0.01% + 2 mV (upper display)
20.000 V	0.01% + 2 mV (lower display)
90.00 mV	0.01% + 10 μV
-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA
Resistance	0.0 to 4000.0 Ω
2.0 to 1000.0 CPM	0.05% + 0.1 cpm
1.0 to 1000.0 Hz	0.05% + 0.1 Hz
1.00 to 15.00 kHz	0.05% + 0.01 kHz
Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of (50) 750P pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Frequency	Source Accuracy
100.00 mV	0.01% + 10 μV
24.000 mA (Source)	0.01% + 2 μA
24.000 mA (Simulate)	0.01% + 2 μA
Range, accuracy (percent of reading + floor) and excitation current	5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA
1.0 to 10.0 kHz	0.25%
10.0 to 15.0 kHz	0.5%
Waveform	5 V p-p squarewave, -0.1 V offset
Cu10	1.8°C
NI-120	0.15°C
PT-100 (385)	0.45°C
PT-100 (392)	0.35°C
PT-100 (391-JIS)	0.35°C
PT-200 (385)	0.95°C
PT-500 (385)	0.55°C
PT-1000 (385)	0.35°C
RTD Resolution	0.01°C (0.01°F)
Cu10.01 C	0.1°C (0.1°F)
J	0.4°C
K	0.5°C
T	0.4°C
E	0.4°C
R	1.4°C
S	1.4°C
B	1.4°C
L	0.45°C
U	0.45°C
N	0.6°C
XK	0.4°C
BP	1.1°C
TC Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
Measure and source accuracy	Specifications
Source functions	Voltage, current, resistance, frequency, temperature
Ramps	Slow ramp, Fast ramp, 25% step-ramp
Voltage	24 V
Accuracy	10%
Maximum current	22 mA, short circuit protected
Steps	25% of range, 100% of range
Step functions	Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to +71°C
Operating altitude	3000 m
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Size	200 x 96 x 47 mm (7.9 x 3.8 x 1.9 in)
Weight	650 g (23 oz)
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessible without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming
