724 Temperature Calibrator

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: FLUKE-724

Fluke 724 handheld temperature calibrator. Sources and measures thermocouples (J, K, T, E, R, S, B, L, U, N, C, XK, BP), RTDs (Pt100/200/500/1000, Ni120, Cu10), mA, volts, ohms, and frequency from a single tool. Dual display measures the TC or RTD input while simultaneously sourcing mA, so a transmitter can be verified in one pass — source the process variable, read the loop current. Suited to process plants, power generation, and instrumentation shops calibrating temperature transmitters, thermostats, and indicators in the field.

$3,503.99

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Fluke 724 temperature calibrator: test & calibrate almost any temperature instrument. Switch from RTDs to TCs, source & measure, troubleshoot. Dual display.

Key Features

Powerful, easy-to-use, high-accuracy temperature calibrator
Test and calibrate temperature sensors and transmitters
Measures 4 to 20 mA loops and can provide loop power
Measures RTDs, thermocouples, ohms, and volts
Source/simulates thermocouples, RTDs, volts, and ohms

The Fluke 724 Temperature Calibrator # FLUKE-724 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

724 Temperature Calibrator

SKU: FLUKE-724

$3,503.99

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Fluke 724 temperature calibrator: test & calibrate almost any temperature instrument. Switch from RTDs to TCs, source & measure, troubleshoot. Dual display.

Key Features

Powerful, easy-to-use, high-accuracy temperature calibrator
Test and calibrate temperature sensors and transmitters
Measures 4 to 20 mA loops and can provide loop power
Measures RTDs, thermocouples, ohms, and volts
Source/simulates thermocouples, RTDs, volts, and ohms

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

General	Measurement Accuracy
30.000 V	0.02% + 2 counts (upper display)
20.000 V	0.02% + 2 counts (lower display)
100.00 mV	0.02% + 2 counts
-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA
0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Resistance	Source Accuracy
10.000 V	0.02% + 2 counts
15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
NI-120	0.2°C
PT-100 (385)	0.33°C
PT-100 (393)	0.3°C
PT-100 (JIS)	0.3°C
PT-200 (385)	0.2°C
PT-500 (385)	0.3°C
PT-1000 (385)	0.2°C
Resolution	0.1°C
J	0.7°C
K	0.8°C
T	0.8°C
E	0.7°C
R	1.8°C
S	1.5°C
B	1.4°C
L	0.7°C
U	0.75°C
N	0.9°C
XK	0.6°C
BP	1.2°C
Source accuracy	Accuracy stated for 4-wire measurement.
Source functions	Voltage, current, resistance, frequency, temperature
Ramps	Slow ramp, Fast ramp, 25% step-ramp
Voltage	24 V
Accuracy	10%
Maximum current	22 mA, short circuit protected
Steps	25% of range, 100% of range
Step functions	Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-20°C to 71°C
90%	10°C to 30°C
75%	30°C to 40°C
45%	40°C to 50°C
35%	50°C to 55°C
Humidity (without condensation)	Safety Specifications
Safety rating	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022:1994 Class B
Size	96 x 200 x 47 mm
Weight	650 g
Batteries	Four AA alkaline batteries
Warranty	Three years
Battery life	25 hours typical
Shock and vibration	Random, 2 G, 5-500 Hz

General	Measurement Accuracy
30.000 V	0.02% + 2 counts (upper display)
20.000 V	0.02% + 2 counts (lower display)
100.00 mV	0.02% + 2 counts
-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA
0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Resistance	Source Accuracy
10.000 V	0.02% + 2 counts
15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
NI-120	0.2°C
PT-100 (385)	0.33°C
PT-100 (393)	0.3°C
PT-100 (JIS)	0.3°C
PT-200 (385)	0.2°C
PT-500 (385)	0.3°C
PT-1000 (385)	0.2°C
Resolution	0.1°C
J	0.7°C
K	0.8°C
T	0.8°C
E	0.7°C
R	1.8°C
S	1.5°C
B	1.4°C
L	0.7°C
U	0.75°C
N	0.9°C
XK	0.6°C
BP	1.2°C
Source accuracy	Accuracy stated for 4-wire measurement.
Source functions	Voltage, current, resistance, frequency, temperature
Ramps	Slow ramp, Fast ramp, 25% step-ramp
Voltage	24 V
Accuracy	10%
Maximum current	22 mA, short circuit protected
Steps	25% of range, 100% of range
Step functions	Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-20°C to 71°C
90%	10°C to 30°C
75%	30°C to 40°C
45%	40°C to 50°C
35%	50°C to 55°C
Humidity (without condensation)	Safety Specifications
Safety rating	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022:1994 Class B
Size	96 x 200 x 47 mm
Weight	650 g
Batteries	Four AA alkaline batteries
Warranty	Three years
Battery life	25 hours typical
Shock and vibration	Random, 2 G, 5-500 Hz

724 Temperature Calibrator

Key Features

Have questions about this product?

Related Products

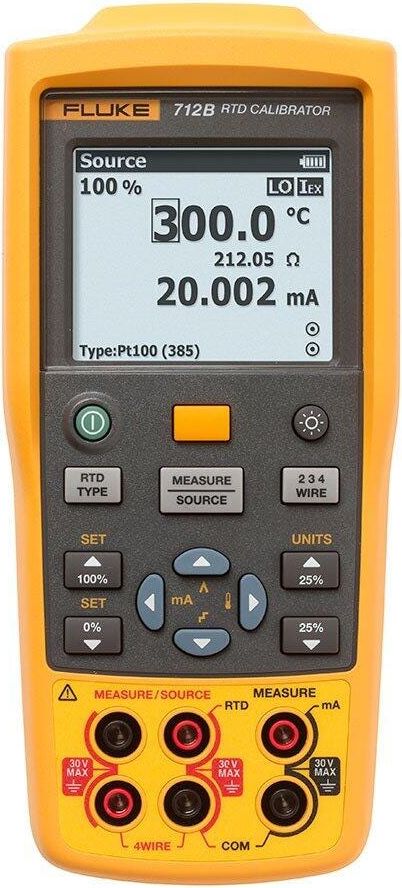

712B/EN RTD Calibrator

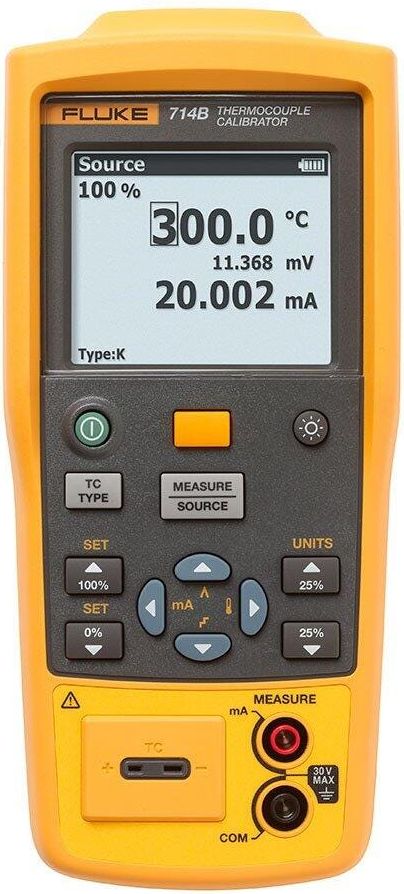

714B/EN Thermocouple Calibrator
