SKU: FLUKE-721EX-1603
Fluke 721Ex Precision Pressure Calibrator is ideal for pressure calibration & temp measurement of gas custody transfer in explosive environments. Get the specs.
List price. Volume pricing available.
Fluke 721Ex Precision Pressure Calibrator is ideal for pressure calibration & temp measurement of gas custody transfer in explosive environments. Get the specs.

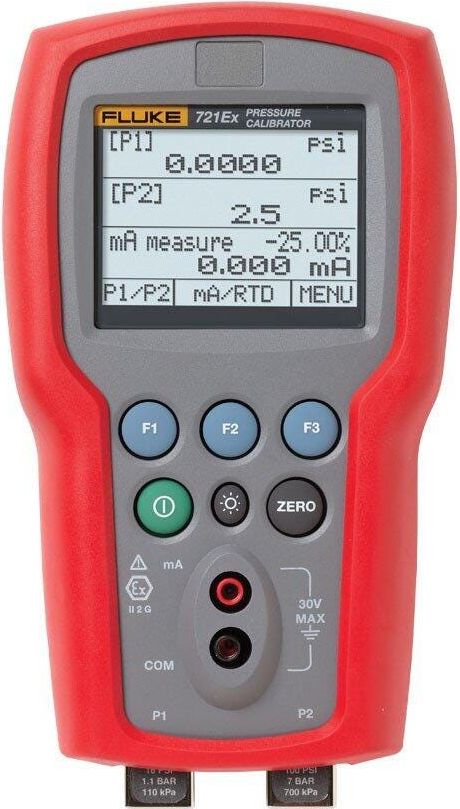

The Fluke 721EX-1603 Dual Sensor Pressure Calibrator, 16 PSIG, 300 PSIG # FLUKE-721EX-1603 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications 1-Year |
| Range | Resolution |
| -14 psi to +16 psi,-0.97 bar to 1.1 bar | 0.001 psi,0.0001 bar |
| 0 psi to +1500 psi,0.00 bar to 103.4 bar | 0.1 psi,0.001 bar |
| 0 psi to +3000 psi,0.00 bar to 200 bar | 0.1 psi,0.01 bar |
| 0 psi to +5000 psi,0.00 bar to 345 bar | 0.1 psi,0.01 bar |
| -14 psi to +36 psi,-0.97 bar to 2.48 bar | 0.001 psi,0.0001 bar |
| High pressure sensor | General Specifications |
| Instrument setup recall | Last used on power-up |
| Environmental | Operating temperature -10°C to +45°CStorage temperature (without batteries) -20°C to +60°C |
| Altitude | 2,000 m |
| Ingress protection | IP-40 |
| Power requirements | 6.0 V DC |
| Battery life | >35 hours, typical usage |
| Batteries required | (4) Standard AA cells |
| Dimensions (H x W x D) | 7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm) |
| Weight | 03539 kg (1 lb 3 oz) |
| Connectors/ports pressure | Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe |
| Function | Range |
| mA measure | 0 to 24 mA |
| ATEX | KEMA 10 ATEX 0168X |
| IECEx | II 2 G IECEx CSA 10.0013X |
This product is part of a family with 6 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLUKE-721EX-1630 | Request Quote | View Details → |
FLUKE-721EX-1615 | Request Quote | View Details → |
FLUKE-721EX-1603Current | Request Quote | Viewing |
FLUKE-721EX-3650 | Request Quote | View Details → |
FLUKE-721EX-3630 | Request Quote | View Details → |
FLUKE-721EX-3615 | Request Quote | View Details → |
