Power Field Wireable - M12 Power

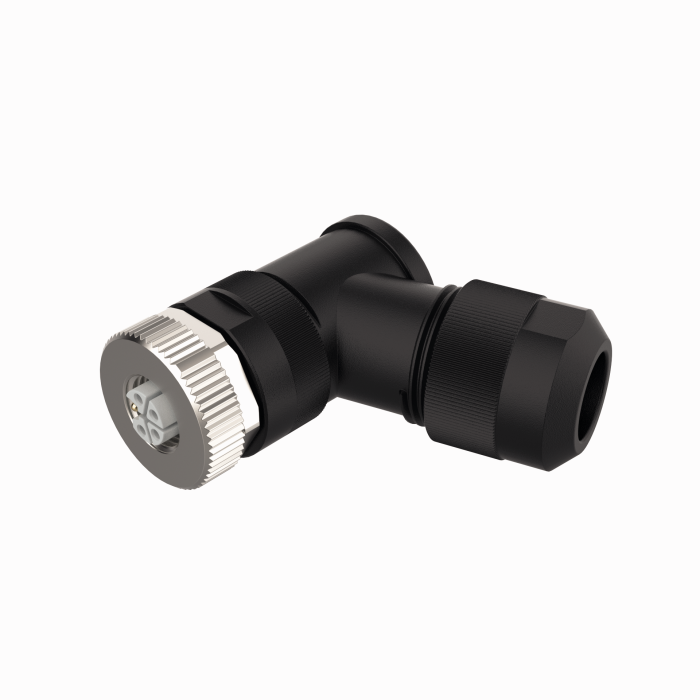

Power Field Wireable — M12 Power — Female Connector M12 × 1, Angled

• Right angle Female M12 Powerfast Field Wireable
• 5 pins
• Screw termination
• Plastic housing
• Screw-clamp terminal
• 5-pin (4+FE)
• Cable feedthrough: 8.0…13.0 mm
• Terminal capacity: Max. 1.5 mm² or 16 AWG (with cable end sleeve)Max. 2.5 mm² or 14 AWG (without cable end sleeve)
• Max. 1.5 mm² or 16 AWG (with cable end sleeve)
• Max. 2.5 mm² or 14 AWG (without cable end sleeve)

The Turck Power Field Wireable - M12 Power # WK56PL-S-0 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
