SKU: TB-4M8Z-3N2-FS8
4 · Male, M12 × 1, Top exit · 30 V · CE, UKCA, RoHS
List price. Volume pricing available.

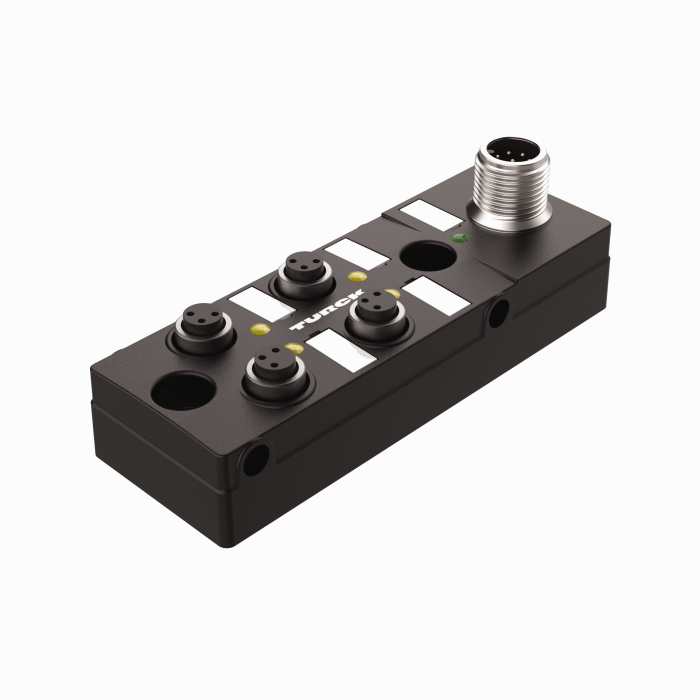

Passive Actuator/Sensor Junction Box, 4 Ports — Ø 8 mm, I/O Port with M12 Male Connector for the Supply Cable
The Turck Passive Actuator/Sensor Junction Box, 4 Ports - Ø 8 mm, I/O Port with M12 Male Connector for the Supply Cable # TB-4M8Z-3N2-FS8 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101469516 |
| Customs tariff number | 8544429090 |
| Country of origin | MX |
| Weight | 68.09 g |
| Number of ports | 4 |
| Display switching state | LED, yellow |
| Switching function | NPN |
| I/O Port | Female, Ø 8 mm |
| Number of contacts | 8 |
| Homerun connector | Male, M12 × 1, Top exit |
| Housing material | Plastic, PA6-GF30 |
| Voltage | 30 V |
| Ampacity | 2 A per contact, total current 2 A |
| Approvals | CE, UKCA, RoHS |
| Connector Series | M8 picofast |
