SKU: TB-4M12-5P3-K-F/0612
4 · Terminal chamber · 30 V
List price. Volume pricing available.

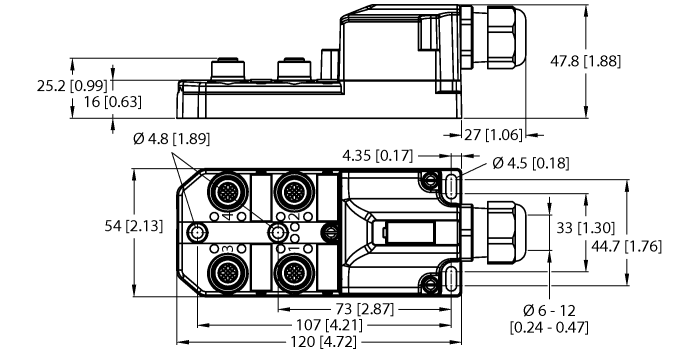

Passive actuator/sensor junction box, 4 ports — M12 I/O slot with terminal chamber for the supply cable
The Turck Passive actuator/sensor junction box, 4 ports - M12 I/O slot with terminal chamber for the supply cable # TB-4M12-5P3-K-F/0612 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101469899 |
| eCl@ss-Code (V5.1.4) | 27250316 -/- Passive sensor/actuator junction |
| Customs tariff number | 8536694020 |
| Country of origin | CN |
| Weight | 197 g |
| Application | Signal |
| Number of ports | 4 |
| Display switching state | LED, yellow |
| Switching function | PNP |
| I/O Port | M12 × 1 |
| Number of contacts | 20+PE |
| Homerun connector | Terminal chamber |
| Housing material | Plastic, PA |
| Voltage | 30 V |
| Ampacity | 2 A per signal contact, total current 10 A |
