SKU: PSWS 4M PSWS 4M 4413-2M
View all 19 variants in this family
2 A · TPU, Teal · Brass, CuZn, Nickel-plated · Ø 5.69 mm
List price. Volume pricing available.
Ethernet Cordset — Extension Cordset
The Turck Ethernet Cordset - Extension Cordset # PSWS 4M PSWS 4M 4413-2M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 8544429090 |
| Country of origin | CZ |
| Weight | 1.1 g |
| Application | Data |
| Design | Double-ended |

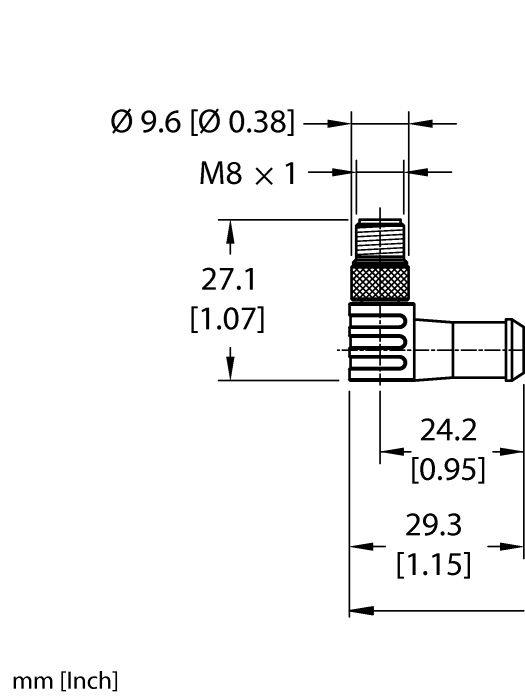

| Connector A | Male, M8 × 1, Right angle |
| Number of contacts | 4 |
| Connector body | Plastic, TPU, Yellow |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Connector B | Male, M8 × 1, Right angle |
| Fieldbus Protocol | Ethernet |
| Voltage | 125 V |
| Current | 2 A |
| Cable diameter | Ø 5.69 mm |
| Cable jacket | TPU, Teal |
| Number of Conductors | 4 |
| Protection class (When coupled) | IP68 |
| Special Features | Halogen free cableShielded |
| Approvals | RoHS |
| Connector Series | Fieldbus |
