SKU: FW-ERKSM0426-FD-P-0408
Female, M12 × 1, Straight, D-code · 4 · Die-cast Zinc, GD-Zn, Nickel-plated · cULus
List price. Volume pricing available.

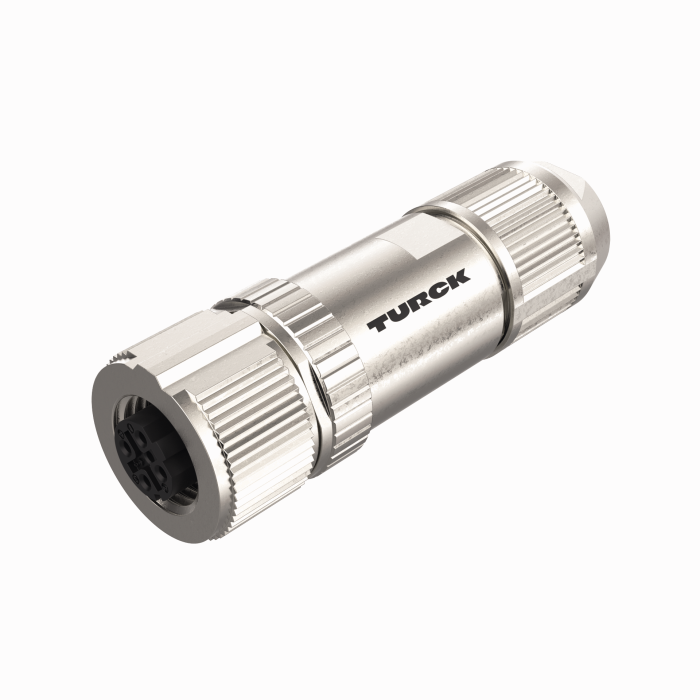

Field-Wireable Connector — Industrial Ethernet — Female Connector M12 × 1, Straight
The Turck Field-Wireable Connector - Industrial Ethernet # FW-ERKSM0426-FD-P-0408 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101583410 |
| eCl@ss-Code (V5.1.4) | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 42 g |
| Application | Data |
| Fieldbus Protocol | Ethernet, EtherNet/IP, Ethernet CAT5E, PROFINET |
| Connector A | Female, M12 × 1, Straight, D-code |
| Number of contacts | 4 |
| Connection mode | Push-in connection |
| Housing material | Die-cast Zinc, GD-Zn, nickel-plated |
| Coupling nut/screw material | Die-cast Zinc, GD-Zn, Nickel-plated |
| Acceptable cable diameter | 4…8 mm |
| Core cross-section/Clamping ability | 0.14…0.75 mm² |
| Approvals | cULus |
| Connector Series | Fieldbus |
