SKU: EFSBT-A8.600.4-0.2
View all 4 variants in this family
Male, M12 × 1, A-code · 8 · Brass, CuZn, Nickel-plated · 2 A · UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
List price. Volume pricing available.

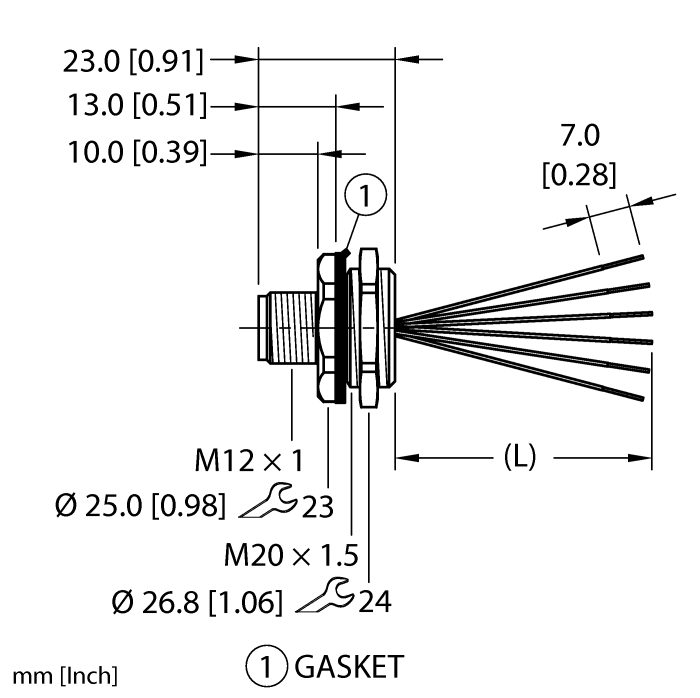

Actuator and Sensor Receptacle — Front Mount
The Turck Actuator and Sensor Receptacle - Front Mount # EFSBT-A8.600.4-0.2 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8536694020 |
| Country of origin | MX |
| Weight | 1100 g |
| Application | Signal |
| Connector A | Male, M12 × 1, A-code |
| Number of contacts | 8 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | M20 × 1.5 |
| Current | 2 A |
| Length (L) | 0.2 m |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Connector Series | M12 Hydra |
