SKU: BK4140-0/9/C1265
Female, 7/8″-16 UN, Straight · 4 · Aluminum, Anodized · CE, UKCA, RoHS
List price. Volume pricing available.

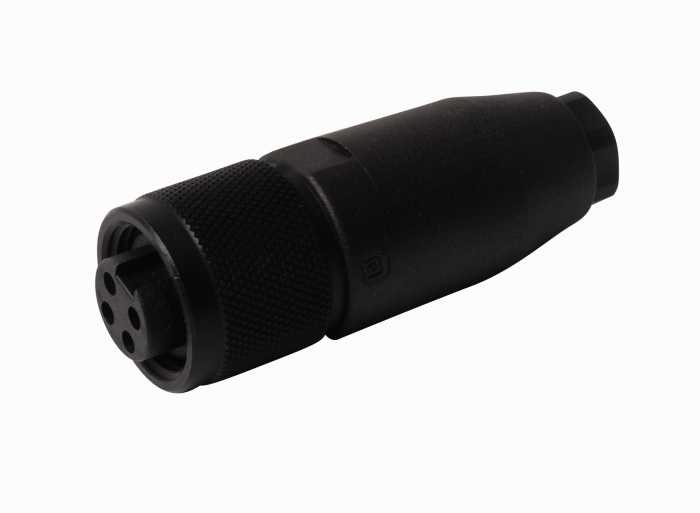

Actuator and Sensor Field Wireable — 7/8” Connection
The Turck Actuator and Sensor Field Wireable - 7/8” Connection # BK4140-0/9/C1265 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8536694020 |
| Country of origin | CZ |
| Weight | 46.75 g |
| Application | Signal |
| Fieldbus Protocol | FOUNDATION fieldbus, PROFIBUS-PA |
| Connector A | Female, 7/8″-16 UN, Straight |
| Number of contacts | 4 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PBT |
| Coupling nut/screw material | Aluminum, Anodized |
| Acceptable cable diameter | 6…8.5 mm |
| Core cross-section/Clamping ability | 1.5 mm² |
| Voltage | 600 V |
| Current | 9 A |
| Approvals | CE, UKCA, RoHS |
| Connector Series | 7/8" minifast |
