SKU: 4MB12Z-5N3-CS19H
4 · Male, M23 × 1, Side exit · 30 V · UL Listed, RoHS
List price. Volume pricing available.

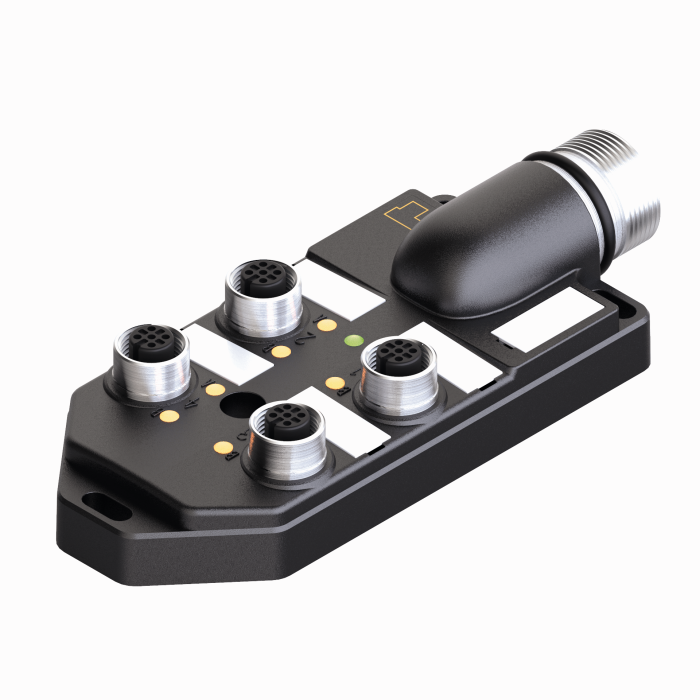

Passive Actuator/Sensor Box, M12 × 1 — 4-port, with M23 homerun connector
The Turck Passive Actuator/Sensor Box, M12 × 1 - 4-port, with M23 homerun connector # 4MB12Z-5N3-CS19H is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27250313 -/- Communication interface, passive |
| Customs tariff number | 8536908530 |
| Country of origin | MX |
| Weight | 200.63 g |
| Application | Signal |
| Number of ports | 4 |
| Display switching state | LED, yellow |
| Switching function | NPN |
| I/O Port | Female, M12 × 1 |
| Number of contacts | 19 |
| Signals Per Port | 2 |
| Homerun connector | Male, M23 × 1, Side exit |
| Housing material | Plastic, PA6-GF30 |
| Voltage | 30 V |
| Ampacity | 2 A per signal contact, total current 9 A |
| Approvals | UL Listed, RoHS |
| Connector Series | M12 eurofast |
